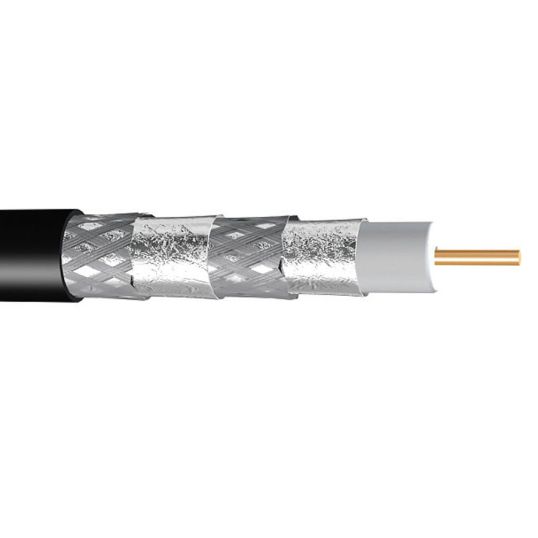

Matchmaster Digimatch RG11 Coaxial Cable Quad Shield Flooded 1.63mm Black 305M

Description

RG11 Coaxial Cable Quad Shield Flooded, Inner: 1.63 +/-0.015mm, Outer: 7.32 +/-0.15mm Conductor Diameter, Bend Radius: Single: 50mm, Typical: 100mm, Adhesion Force: >60 N, Pulling Tension: 384 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Polyethylene Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 10.34 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C

Key Specifications

Barcode (EAN-13)	9322190010210
SKU	MAT06MM-E11QF
Brand	Matchmaster
Product Type	Coax Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	An RG11 metre marked cable with quadshielding and flooded Gel filled Cable designed for underground use Suitable and approved for Pay and Digital TV
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	06MM-E11QF
Braid Material	Al-Mg Alloy Wire
Bend Radius	Single: 50mm/Typical: 100mm
Capacitance	54 pF/mtr
Conductor Diameter	Inner: 1.63 +/-0.015mm/Outer: 7.32 +/-0.15mm
Insulation Material	Physically Foamed PE
Insulation Resistance	>1x10 power of 4 MOhm.km
Overall Diameter	10.34 +/-0.2mm
Screen Material	Non-Bonded Aluminium/PET/Aluminium Tape
Pulling Tension	384 N
Sheath Colour	Black
Sheath Material	Polyethylene
Temperature	-40 to 70 deg C
