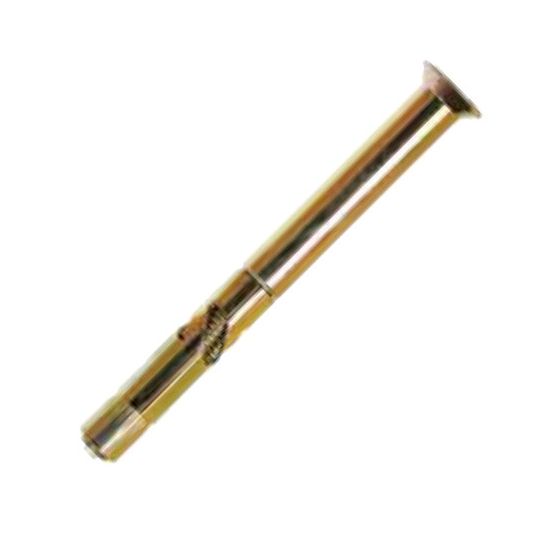

Ramset Masonry Sleeve Anchor Countersunk Head Medium Duty 6x34mm Carbon Steel Zinc Plated

$Ramset\Ramset_D6034F.jpg$

Description

Masonry Sleeve Anchor Countersunk Head Medium Duty, 6 mm, M4.5 Thread, 34mm Length, 30mm Effective Length, 40mm Min Drill Depth, 6mm Drill Diameter, Carbon Steel, Zinc Plated, 25mm Embedment Depth, 10mm Max. Fixture Thickness, 8mm Fixture Hole Diameter, 55mm Min. Edge Distance, 75mm Min. Spacing, Tensile Strength: 2.7 kN, Shear Strength: 2.5 kN, Torque Rating: 10 N-m, For Use With: Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab

Key Specifications

Barcode (EAN-13)	9310535019653
SKU	RAMD6034F
Brand	Ramset

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The DynaBolt Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security. The DynaBolt Plus is a fully assembled through fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy
Standard Pack Size	100
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMD6034F
Drill Diameter	6 mm
Drill Depth	40 mm Min
Diameter	6 mm
Embedment Depth	25 mm
Finish	Zinc Plated
Fixture Hole Diameter	8 mm
For Use With	Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block/Hollow Slab
Head Type	Countersunk
Material	Carbon Steel
Maximum Fixture Thickness	10 mm
Minimum Edge Distance	55 mm
Minimum Spacing	75 mm
Product Type	simple
Tensile Strength	2.7 kN
Thread Size	M4.5
Torque Rating	10 Nm
