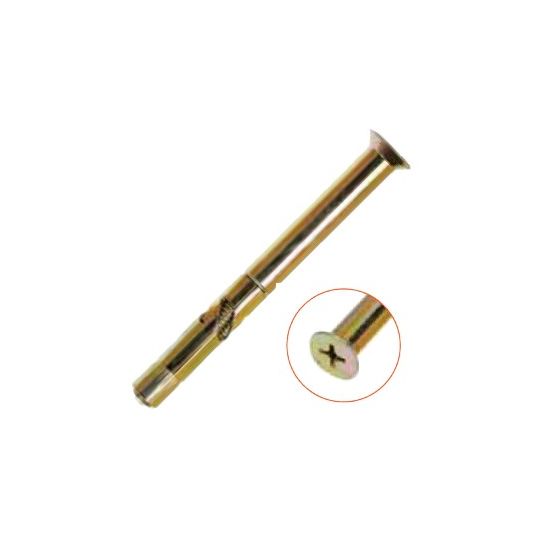

Ramset Masonry Sleeve Anchor Countersunk Head Medium Duty 6x60mm Carbon Steel Zinc Plated

$Ramset\DynaBolt.jpg$

Description

Masonry Sleeve Anchor Countersunk Head Medium Duty, 6 mm, M4.5 Thread, 60mm Length, 25mm Effective Length, 50mm Min Drill Depth, 6mm Drill Diameter, Carbon Steel, Zinc Plated, 25mm Embedment Depth, 30mm Max. Fixture Thickness, 8mm Fixture Hole Diameter, 55mm Min. Edge Distance, 75mm Min. Spacing, Tensile Strength: 2.7 kN, Shear Strength: 2.5 kN, Torque Rating: 10 N-m, For Use With: Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab

Key Specifications

Barcode (EAN-13)	9310535313249
SKU	RAMDP06060F
Brand	Ramset
Range Name	DynaBolt

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The DynaBolt Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security The DynaBolt Plus is a fully assembled through fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy
Standard Pack Size	100
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMDP06060F
Drill Diameter	6 mm
Drill Depth	50 mm Min
Diameter	6 mm
Embedment Depth	25 mm
Finish	Zinc Plated
Fixture Hole Diameter	8 mm
For Use With	Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block/Hollow Slab
Head Type	Countersunk
Material	Carbon Steel
Maximum Fixture Thickness	30 mm
Minimum Edge Distance	55 mm
Minimum Spacing	75 mm
Product Type	simple
Tensile Strength	2.7 kN
Thread Size	M4.5
Torque Rating	10 Nm
