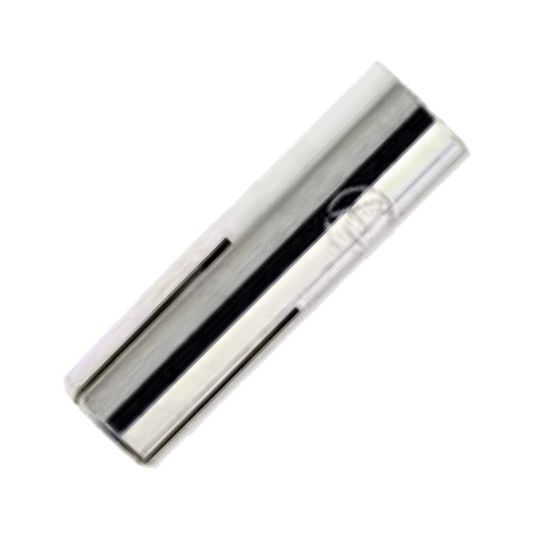

Ramset Drop-in Anchor Medium Duty Standard M10x40mm Carbon Steel Zinc Plated

Description

Drop-In Anchor Medium Duty Standard, M10 x 16 mm Length, 40 mm Length, 43 mm Drill Depth, 12 mm Drill Diameter, 38 mm Embedment Depth, 135 mm Minimum Edge Distance, 95 mm Minimum Spacing, 5.4 kN Tensile Strength, 20 Nm Torque Rating, Carbon Steel, Zinc Plated, For Use With Concrete, 50

Key Specifications

Barcode (EAN-13)	9310535420596
SKU	RAMDSM10
Brand	Ramset

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The Dyna Set fits flush with, or just below, the surface of the substrate, leaving no protrusions when not in use and allowing for easy patch work. The anchorÆs internal thread facilitates the use of machine bolts and threaded studs of any length, removing restrictions on fixture thickness The DynaSet requires only shallow embedment, which reduces the risk of drilling into rebar. The setting tool provides a visual expansion check for correct setting of the anchor
Standard Pack Size	50
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMDSM10
Drill Diameter	12 mm
Drill Depth	43 mm
Embedment Depth	38 mm
Finish	Zinc Plated
For Use With	Concrete
Material	Carbon Steel
Minimum Edge Distance	135 mm
Pack Size	50 Pack
Minimum Spacing	95 mm
Product Type	simple
Tensile Strength	5.4 kN
Thread Size	M10 x 16 mm Length
Torque Rating	20 Nm
