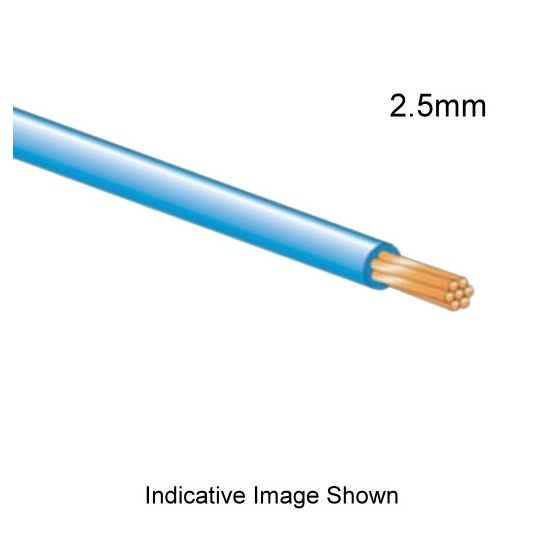

APEC 2.5mm Building Wire Blue 100mtr
Loading...
Description
Building Wire, Single Insulated, 1 Core, 2.5 mm, Annealed Copper, 0.6/1 kV, 3.7 mm Overall Diameter, 0.8 mm Insulation Thickness, V-90 PVC Insulation, Unsheathed, Blue Insulation, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300334
|
|---|---|
| SKU |
APEIVM205L-1
|
| Brand |
APEC
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | IVM205L-1 |
| Conductor Type | Annealed Copper |
| Insulation Colour | Blue |
| Insulation Thickness | 0.8 mm |
| Insulation Material | V-90 PVC |
| Overall Diameter | 3.7 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 2.5 mm |
