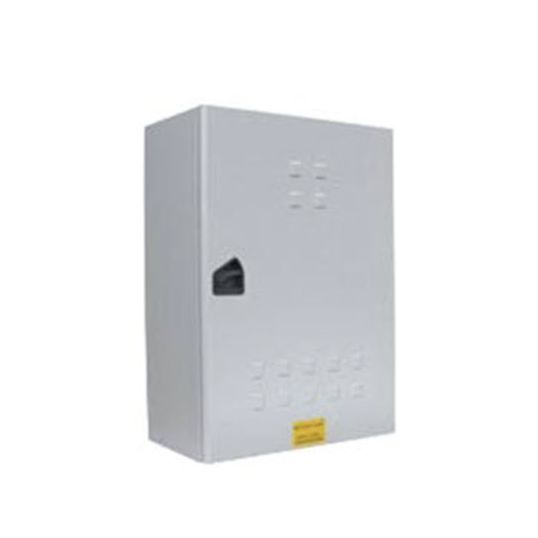

B&R Meter Box Queensland 48 Pole W485mm H860mm D278mm DIN Mount Steel Galvanised

chevron-left
loader
Loading...

Description

chevron-down
Meter Box Queensland, 48 Pole, Side Hinged Door, Padlock, 860 mm Enclosure Height, 485 mm Enclosure Width, 278 mm Enclosure Depth, 480 mm Panel Height, 461 mm Panel Width, IP23, DIN Rail Mounting, Steel, RAL 7035 Grey, Galvanised

Key Specifications

chevron-down
Barcode (EAN-13)
9321228042490
SKU
B&RQ12
Brand
B&R
Range Name
Horizon Q
Product Type
Meter Boxes Domestic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for both single and multi-phase installations
  • Provide safety, quality and performance
  • Suitable for domestic and light commercial metering applications
  • Easy-to-use gravity catch
  • Ratchet sliding cable entry
  • Rota DIN rotating/removable DIN section
  • Cord retainer for easy retention of extension cords
  • Identification with covered labelling section
  • Weatherproof installation label for AS/NZS3000 compliance
  • Padlockable facility
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product Q12
Colour Grey
Door Type Side Hinged
Enclosure Depth 278 mm
Enclosure Height 860 mm
Enclosure Width 485 mm
Finish Galvanised
Material Steel
Lock Type Padlock
IP Rating IP23
Mounting Method DIN Rail
Number Of Poles 48 Pole
Panel Height 480 mm
Panel Width 461 mm
