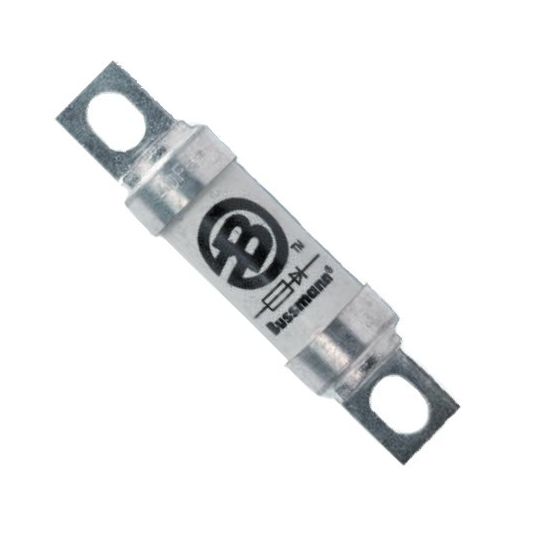

Bussmann Semiconductor Fuse Link High Speed Bolt In Offset 25A 690VAC/500VDC 200kA 17.1x77mm
Loading...
Description
Semiconductor Fuse Link High Speed Bolt In Offset, 690 VAC/500 VDC, 25 Amp, 64mm Fixing Centres, Interrupt Capacity: 200 kA, Class aR, Bolt In Offset Tag, 17.1mm Diameter x 77mm Length
Key Specifications
| SKU |
BUS25ET
|
|---|---|
| Brand |
Bussmann
|
| Range Name |
BS88 Semi Conductor
|
| Product Type |
Fuse Links Semiconductor
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 25ET |
| Current | 25 Amp |
| Dimensions | 17.1 mm Diameter x 77 mm Length |
| Fixing Centres | 64 mm |
| Interrupt Capacity | 200 kA |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class aR |
| Voltage | 690 Volt AC/500 Volt DC |
