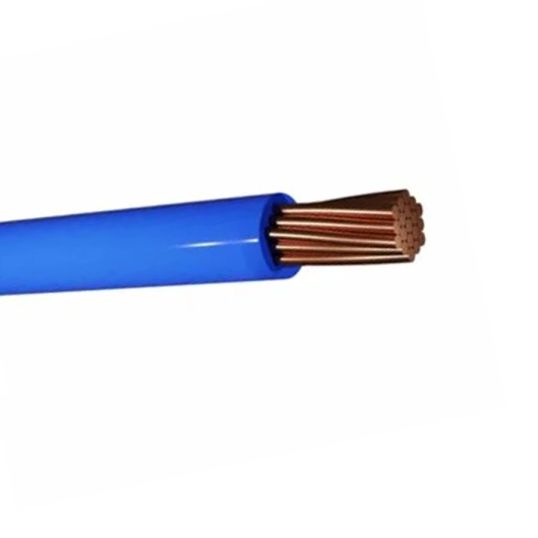

Building Wire 1 Core 35mm V-90 PVC Blue 0.6/1kV

35mm Building Wire Blue 100mtr

PRODUCT CODE:
CBL35BWBU

Std Pack Size
100
OUR P/N:
CBL35BWBU

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 35 mm, Plain Annealed Copper, 0.6/1 kV, 115 Amp, 19/1.53 mm Strands, 10.1 mm Overall Diameter, 45 mm Bend Radius, 1.2 mm Insulation Thickness, Conductor Resistance: DC - 0.524 Ohm/km AC - 0.638 Ohm/km, V-90 PVC Insulation, Unsheathed, Blue Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808

Additional Information

Additional Information
Brand Generic
Standard Pack Size 100
UNSPSC Class 26121500
UOM MTR
Vendor Product SR1350-BLU
Bend Radius 45 mm
Conductor Type Plain Annealed Copper
Conductor Resistance DC: 0.524 Ohm/km AC: 0.638 Ohm/km
Current 115 Amp
Insulation Colour Blue
Insulation Thickness 1.2 mm
Insulation Material V-90 PVC
Overall Diameter 10.1 mm
Product Type Building Wire
Stranding 19/1.53 mm
Standards AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 35 mm
