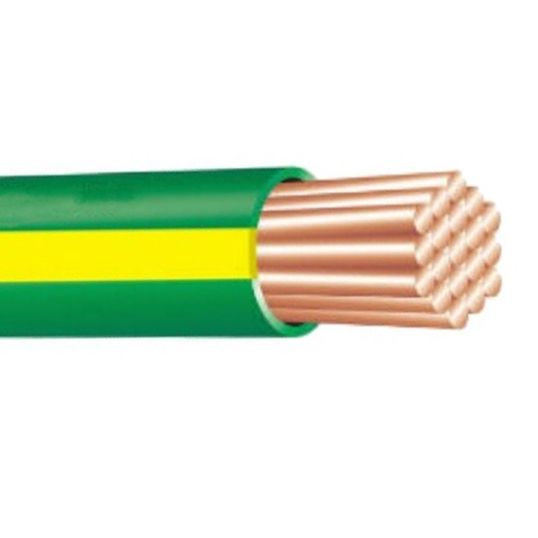

Electra 1.5mm Building Wire Green/Yellow 100mtr

Description

Building Wire, 1.5 mm, Annealed Copper, 0.6-1 kV, 16 Amp, 7/0.5 mm Strands, 3.1 mm Overall Diameter, 100 mtr Length, 15 mm Bend Radius, 0.8 mm Insulation Thickness, DC: 13.6 Ohm/km AC: 16.5 Ohm/km Conductor Resistance, V-90 PVC Insulation, Green/Yellow Insulation, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	ELCSR1015-G/Y
Brand	Electra
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121614
UOM	MTR
Vendor Product	SR1015-G/Y
Bend Radius	15 mm
Conductor Resistance	DC: 13.6 Ohm/km AC: 16.5 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Current	16 Amp
Insulation Colour	Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Overall Diameter	3.1 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Stranding	7/0.5 mm
Temperature	90 deg C
Voltage	0.6-1 kV
