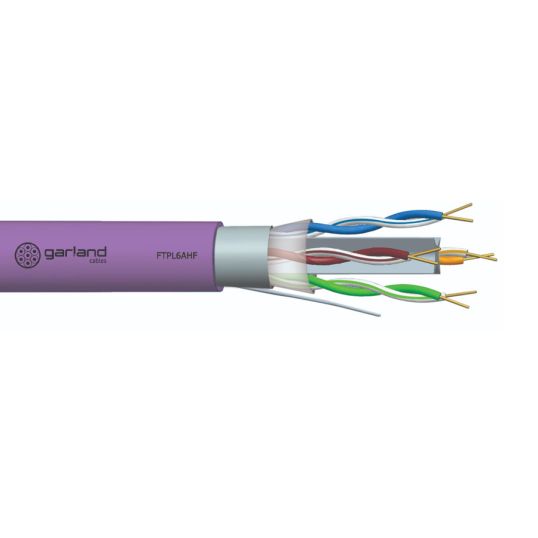

Garland Pro Series F/UTP Data Cable Cat6A 4 Pair Screened 23AWG Polyethylene/LSZH Violet 305M

Description

CAT 6A Data Cable F/UTP, 80 Volt, Annealed Copper, 23 AWG, 0.58 mm Conductor Diameter, <=7.32 Ohm/100m Conductor Resistance, 1-500 MHz Frequency Bandwidth, Solid Strands, 0.5 mm Sheath Thickness, Cat 6A F/UTP, 4 Pair, 65 mm Static Bend Radius, 126 N Max. Pulling Force, Annealed Copper Conductor, Foam Polyethylene Insulation, Aluminium Screen, 75C Rated LSZH Sheath, Violet Sheath, 15 to 75 deg C, 305 mtr Length, 7.2 mm Outside Diameter

Key Specifications

SKU	GARFTPL6AHFVT305
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor Cable Fire Retardant LSZH jacket Screened
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FTPL6AHFVT305
Cable Type	Cat 6A F/UTP
Bend Radius	65 mm Static
Conductor Diameter	0.58 mm
Conductor Resistance	<=7.32 Ohm/100m
Conductor Size	23 AWG
Conductor Type	Annealed Copper
Conductor Material	Annealed Copper
Frequency Bandwidth	1-500 MHz
Insulation Material	Foam Polyethylene
Max. Pulling Force	126 N
Pair Count	4
Outside Diameter	7.2 mm
Screen Material	Aluminium
Sheath Colour	Violet
Sheath Material	75C Rated LSZH
Sheath Thickness	0.5 mm
Stranding	Solid
Temperature	15 to 75 deg C
Voltage	80 Volt
