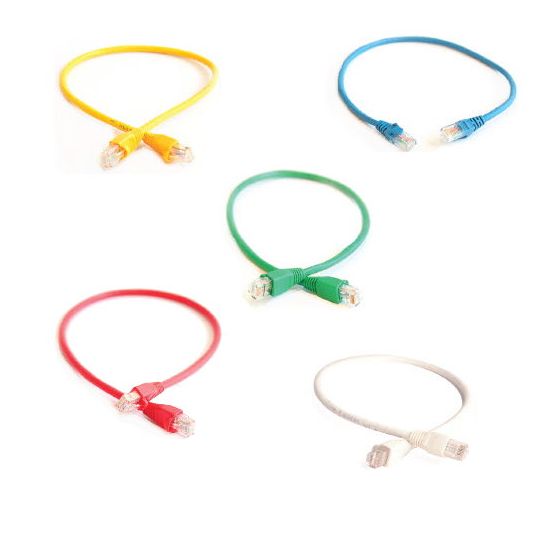

Garland UTP Patch Cord Cat5e RJ45-RJ45 26AWG PVC Grey 1.5M
Loading...
Description
UTP Patch Cord Cat5e, 26 AWG, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 1.5 mtr Cord, 0.15-0.25mm Insulation Thickness, 0.85 ± 0.06mm Insulation Diameter, 0.46-0.58mm Sheath Thickness, 5.6 ± 0.3mm Sheath Diameter, Wiring Scheme: T568B, Bare Copper Conductor, PVC-V75 Sheath, Grey Sheath
Key Specifications
| Barcode (EAN-13) |
9329849008260
|
|---|---|
| SKU |
GARMTEL45451.5GY
|
| Brand |
Garland
|
| Product Type |
Cat5E Patch Cord
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 43223300 |
| UOM | EA |
| Vendor Product | MTEL45451.5GY |
| Cord Length | 1.5 mtr |
| Sheath Colour | Grey |
| Connector A | RJ45 |
| Insulation Thickness | 0.15-0.25mm |
| Sheath Diameter | 5.6 ± 0.3mm |
| Insulation Diameter | 0.85 ± 0.06mm |
| Conductor Size | 26 AWG |
| Connector B | RJ45 |
| Sheath Material | PVC-V75 |
| Wiring Scheme | T568B |
| Conductor Material | Bare Copper |
| Sheath Thickness | 0.46-0.58mm |
