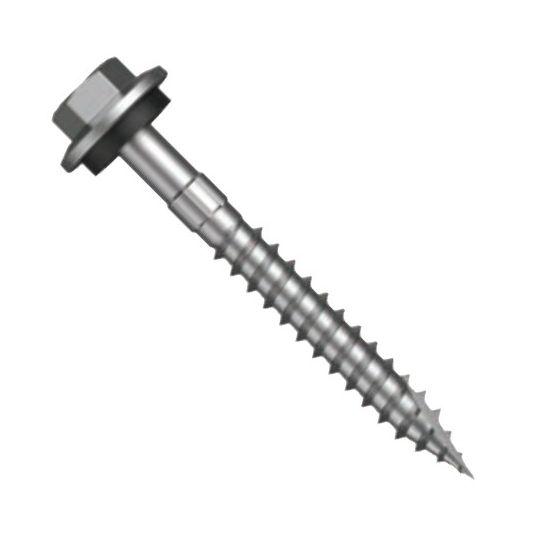

Hobson DRiLLX Self Drilling Screw Type 17 14Gx75mm Sealed Hex Flanged Class 4 with Scratchguard
Loading...
Description
Self Drilling Screw, 14G, 10 TPI, Fully Threaded, Hex Drive, 3/8 Inch Drive, Type 17 Point, Hex Flanged Head, 75 mm Overall Length, 14.7 mm Head Diameter, Class 4 Grade, C1022 Hardened Carbon Steel, AS3566, 500 Pack, With Sealing Washer and Scratchguard
Key Specifications
| Barcode (EAN-13) |
9314818551847
|
|---|---|
| SKU |
HOBT9PW4SS1410075
|
| Brand |
Hobson
|
| Range Name |
Drillx
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 31161500 |
| UOM | EA |
| Vendor Product | T9PW4SS1410075 |
| Drive Size | 3/8 inch |
| Drive Type | Hex |
| Grade | Class 4 |
| Head Diameter | 14.7 mm |
| Material | C1022 Hardened Carbon Steel |
| Head Type | Hex Flanged |
| Overall Length | 75 mm |
| Pack Size | 500 Pack |
| Please Note | with Sealing Washer and Scratchguard |
| Point Type | Type 17 |
| Product Type | simple |
| Screw Gauge | 14G |
| Standards | AS3566 |
| Thread Count | 10 TPI |
| Thread Type | Fully Threaded |
