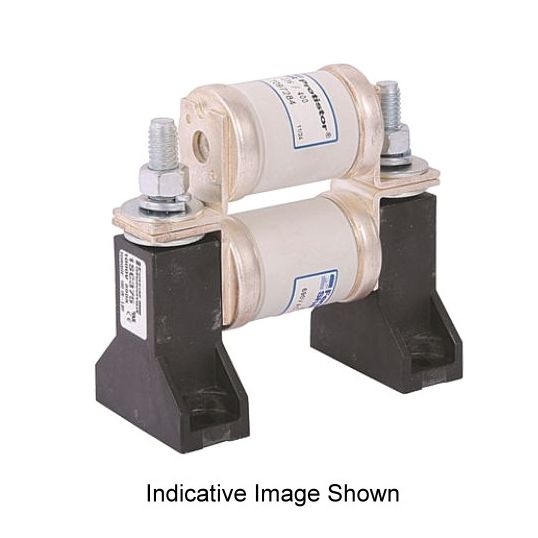

IPD Semiconductor Fuse Link Dual Body Bolt In Centre 500A 690VAC 120kA 37.3x110mm
Loading...
Description
Semiconductor Fuse Link Dual Body Bolt In Centre, 690 VAC, 500 Amp, 76 to 94mm Fixing Centres, Interrupt Capacity: 120 kA, Bolt In Centre Tag, 37.3mm Diameter x 110mm Length
Key Specifications
| Barcode (EAN-13) |
9322017216917
|
|---|---|
| SKU |
IPDZ097289
|
| Brand |
IPD
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 3 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | Z097289 |
| Current | 500 Amp |
| Dimensions | 37.3 mm Diameter x 110 mm Length |
| Fixing Centres | 76-94 mm |
| Interrupt Capacity | 120 kA |
| Tag Type | Bolt In Centre |
| Voltage | 690 Volt AC |
