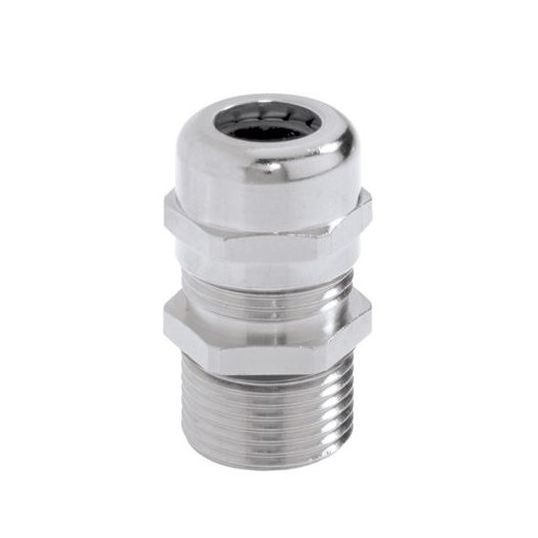

Lapp Kabel Cable Gland EMC VSD Screened Cable Extra Long Thread M25 x 1.5 9-16.5mm IP68

Description

Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M25 x 1.5, 12 mm Thread Length, 1.5 mm Pitch, 9 mm Min. Sheath OD, 16.5 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Key Specifications

SKU	LAP53112645
Brand	Lapp Kabel
Range Name	Skintop MS-SC-M-XL
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low-resistance screen contact, optimum EMC protection Suitable for cables with and without inner sheath Highly conductive, flexible EMC contact for clamping various screen diameters Few operation steps, easy to assemble Also suitable for continuing the cable screen to another connection For telecommunication, industrial machinery and plant engineering, measurement and control technology, automation technology, EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath NBR O-ring Polyamide insert
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112645
Finish	Nickel Plated
Body Material	Brass
IP Rating	IP68
Max. Sheath OD	16.5 mm
Min. Sheath OD	9 mm
Thread Length	12 mm
Temperature	-25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Seal Material	CR
Thread Pitch	1.5 mm
Thread Size	M25 x 1.5
