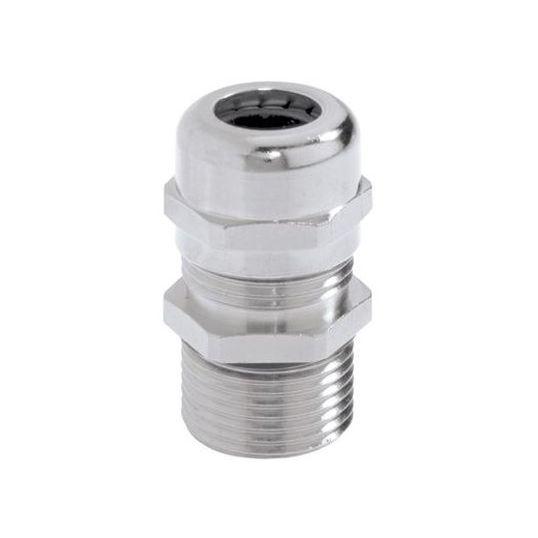

Cable Gland EMC XL Thread M50x1.5 27-35mm IP68

Lapp Kabel Cable Gland EMC VSD Screened Cable Extra Long Thread M50 x 1.5 27-35mm IP68

PRODUCT CODE:
LAP53112675
Std Pack Size
5
OUR P/N:
LAP53112675

You need to be registered and logged in to view product details and pricing

Cable Gland, EMC VSD Screened Cable, Extra Long Thread, M50 x 1.5, 15 mm Thread Length, 1.5 mm Pitch, 27 mm Min. Sheath OD, 35 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Additional Information

Additional Information
Brand Lapp Kabel
Range Name Skintop MS-SC-M-XL
Standard Pack Size 5
UNSPSC Class 39121400
UOM EA
Vendor Product 53112675
Finish Nickel Plated
Body Material Brass
IP Rating IP68
Max. Sheath OD 35mm
Product Type Cable Glands EMC
Min. Sheath OD 27mm
Thread Length 15mm
Temperature -25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Seal Material CR
Thread Pitch 1.5mm
Thread Size M50 x 1.5
