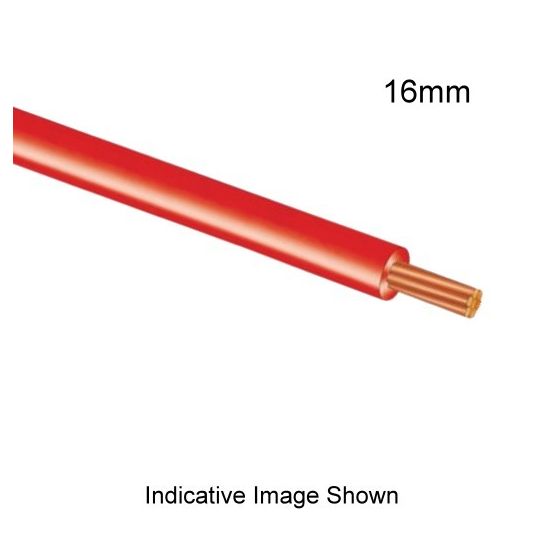

Olex 16mm Building Wire Red 1mtr

Description

Building Wire, 16 mm, Stranded Copper, 0.6-1 kV, 7/1.7 mm Strands, 6.9 mm Overall Diameter, 1 mtr Length, 1 mm Insulation Thickness, 1.1 kN Pulling Tension, DC: 1.15 Ohm/km AC: 1.4 Ohm/km Conductor Resistance, 6 MOhm/km Insulation Resistance, V-90 PVC Insulation, Red Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215008727
SKU	OLX7/170BWRA1
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BAAP15A1001AARD
Conductor Resistance	DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Conductor Size	16 mm
Conductor Type	Stranded Copper
Insulation Colour	Red
Insulation Material	V-90 PVC
Insulation Resistance	6 MOhm/km
Insulation Thickness	1 mm
Overall Diameter	6.9 mm
Pulling Tension	1.1 kN
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/1.7 mm
Temperature	90 deg C
Voltage	0.6-1 kV
