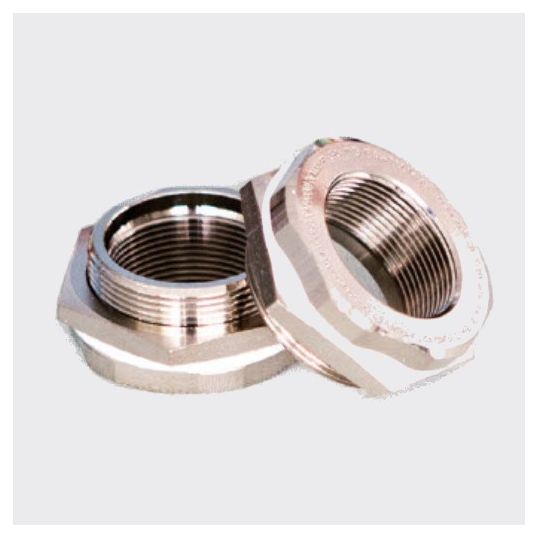

OSCG Hazardous Area Reducer M40 Male to M32 Female Nickel Plated Brass Exe/Exd/ExtD
Loading...
Description
Hazardous Area Reducer, Gland Size M40 Male to M32 Female, For Male & Female Thread Braided Armoured & Unarmoured Cable, Exe/Exd/ExtD, IP66/67, PTFE Gasket, Brass Body, Nickel Plated Finish, -20 to 110 deg C
Key Specifications
| SKU |
OSCOSRA-104/M3
|
|---|---|
| Brand |
OSCG
|
| Product Type |
Hazardous Area Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | OSCOSRA-104/M3 |
| Cable Gland Size | M40 Male to M32 Female |
| Finish | Nickel Plated |
| For Use With | Male & Female Thread Braided Armoured & Unarmoured Cable |
| Hazardous Area Rating | Exe/Exd/ExtD |
| IP Rating | IP66/67 |
| Temperature | -20 to 110 deg C |
