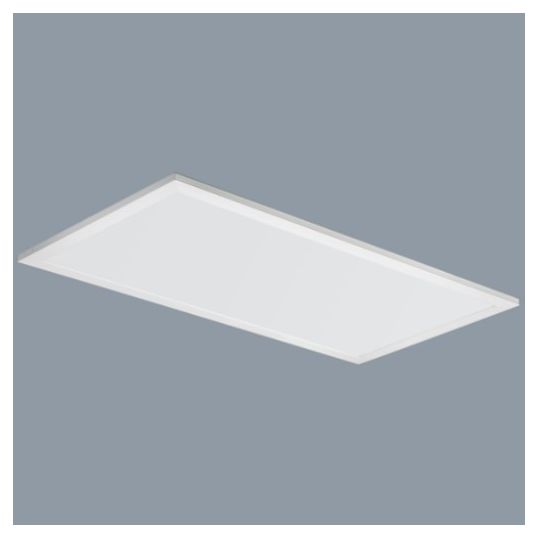

SAL Emergency LED Panel 30W 240V Opal White LED Driver 40 mm 1195 mm IP20

chevron-left
loader
Loading...

Description

chevron-down
Emergency LED Panel, 30 Watt, 240 Volt AC Input Voltage, 50 Hz Input Frequency, SMD LED, 3000/4000/5700K, 100 deg Beam Angle, 80 CRI, Non-Dimmable, Maintained Operating Mode, Opal Diffuser, LED Driver Control Gear, Surface Mounting, IP20, Extruded Aluminium Profile, White, Powder Coated, 25 deg C, 1195 mm Length, 295 mm Width, 12 mm Height

Key Specifications

chevron-down
SKU
SALS9754/312EM
Brand
SAL
Product Type
Emergency Led

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Extruded aluminium profile with high efficiency opal diffuser suitable for a range of installation types
  • Quality white powder coated finish
  • High efficiency SMD LED chips
  • Remote constant current non-dimmable LED driver, complete with flex and plug
  • Easy selectable colour temperature with an inbuilt DIP switch 3000K/4000K/5700K for TC models
  • Suspended wire kits available, emergency models compliant to AS/NZS2293 with D50 spacing classification available
Standard Pack Size 1
UNSPSC Class 39111700
UOM EA
Vendor Product S9754/312EM
Beam Angle 100 deg
Colour White
Colour Temperature 3000/4000/5700K
Control Gear LED Driver
CRI 80
Diffuser Type Opal
Dimmable Non-Dimmable
Height 12 mm
Finish Powder Coated
Input Frequency 50 Hz
Input Voltage 240 Volt AC
IP Rating IP20
Lamp Type SMD LED
Material Extruded Aluminium Profile
Mounting Method Surface
Operating Mode Maintained
Temperature 25 deg C
Width 295 mm
Wattage 30 Watt
