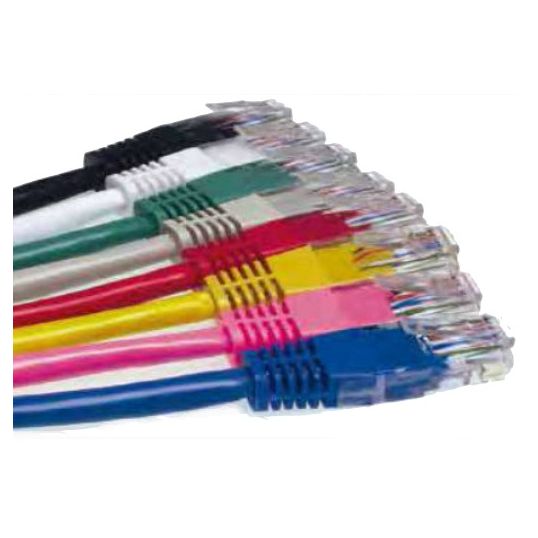

UTP Patch Cord Cat5e RJ45-RJ45 24AWG PVC Blue 3M

Stronglink UTP Patch Cord Cat5e RJ45-RJ45 24AWG PVC Blue 3M


Std Pack Size

You need to be registered and logged in to view product details and pricing

UTP Patch Cord Cat5e, Plug: >= 1.5 Amp, 24 AWG, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 3 mtr Cord, 5.4mm +/-0.2mm Cable Diameter, <= 10 mOhm Contact Resistance, >= 500 mOhm Insulation Resistance, >= 1 KV RMS Dielectric Strength, >= 750 Mating Cycles Durability, Wiring Scheme: T 568 A or T 568 B, Cable To Plug Tensile Strength: >= 89 N, <= 1 Ohm Plug DC Resistance, Stranded Bare Copper Wire Conductor, Phosphor Bronze Contact, CM Grade PVC Sheath, Flame Retardant Plastic Plug Boot, Blue Sheath,-10 to 60 deg C

Additional Information

Additional Information
Brand Stronglink
Standard Pack Size 1
UNSPSC Class 43223300
Vendor Product STROPLC5E3BL
Cord Length 3 mtr
Sheath Colour Blue
Product Type Cat5E Patch Cord
Connector A RJ45
Contact Resistance <= 10 mOhm
Temperature -10 to 60 deg C
Contact Material Phosphor Bronze
Conductor Size 24 AWG
Cable Diameter 5.4mm
Connector B RJ45
Cable To Plug Tensile Strength >= 89 N
Sheath Material CM Grade PVC
Dielectric Strength >= 1 KV RMS
Insulation Resistance >= 500 mOhm
Durability >= 750 Mating Cycles
Plug Boot Material Flame Retardant Plastic
Wiring Scheme T568A/B
Plug DC Resistance <= 1 Ohm
Conductor Material Stranded Bare Copper Wire
Current >= 1.5 Amp
