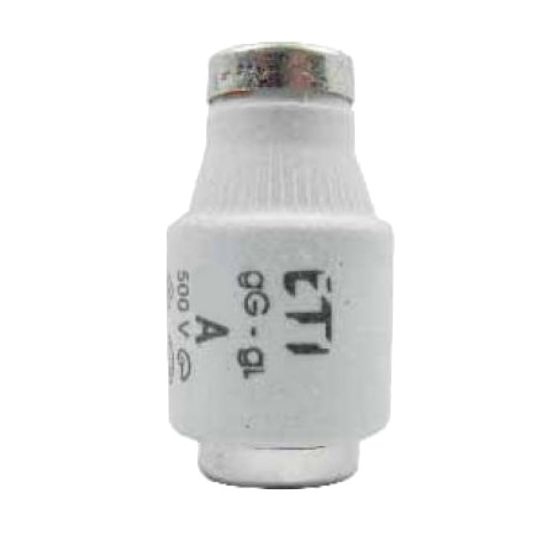

Swe-Check European Bottle Fuse Link Diazed Slow Acting 35A 500VAC 50kA 500VDC 8kA 27x50mm

chevron-left
loader
Loading...

Description

chevron-down
European Bottle Fuse Link Diazed Slow Acting, AC Voltage: 500 VAC, DC Voltage: 500 VDC, 35 Amp, AC Interrupt Capacity: 50 kA, DC Interrupt Capacity: 8 kA, Class TDZ/gG, Black, 16mm Cap Diameter, 27mm Diameter x 50mm Length, DIN Size DIII

Key Specifications

chevron-down
SKU
SWE-B33-SB035
Brand
Swe-Check
Range Name
Type TDZ
Product Type
Fuse Links

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Blown fuse visual indicator
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product SWE-B33-SB035
AC Interrupt Capacity 50 kA
AC Voltage 500 Volt AC
Cap Diameter 16 mm
Colour Black
Current 35 Amp
DC Interrupt Capacity 8 kA
DC Voltage 500 Volt DC
Dimensions 27 mm Diameter x 50 mm Length
Standard Reference DIN Size DIII
Utilisation Category Class TDZ/gG
