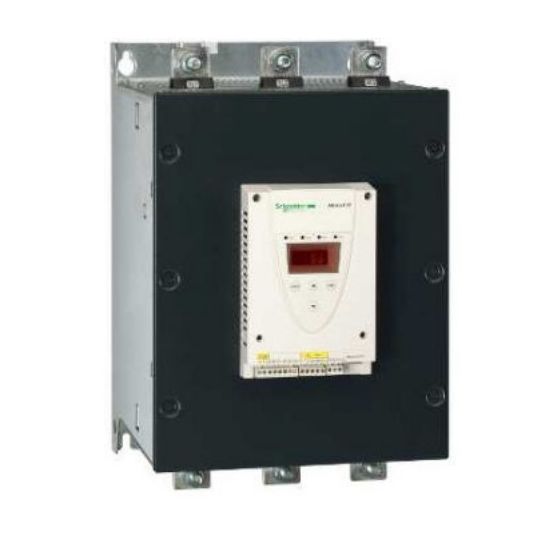

Schneider Motor Starter Soft Start Soft Stop 3 Phase 355kW 415V
Loading...
Description
Motor Starter Soft Start Soft Stop 3 Phase, 230-440 Volt, 560 Amp, 50/60 Hz, 355 kW, 230 Volt, 3 Phase, IP00, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 455 mm Height, 304 mm Width, 339.7 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480211300
|
|---|---|
| SKU |
TEEATS22C59Q
|
| Brand |
Schneider
|
| Range Name |
Altistart 22
|
| Product Type |
Motor Starters Soft Start
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | ATS22C59Q |
| Current | 560 Amp |
| Depth | 339.7mm |
| Frequency | 50/60 Hz |
| Height | 455mm |
| IP Rating | IP00 |
| Phase | 3 Phase |
| Starting Modes | Start With Torque Control |
| Supply Voltage | 230-440 Volt |
| Temperature | -10 to 40 deg C/40 to 60 deg C |
| Wattage | 355 kW |
| Width | 304mm |
