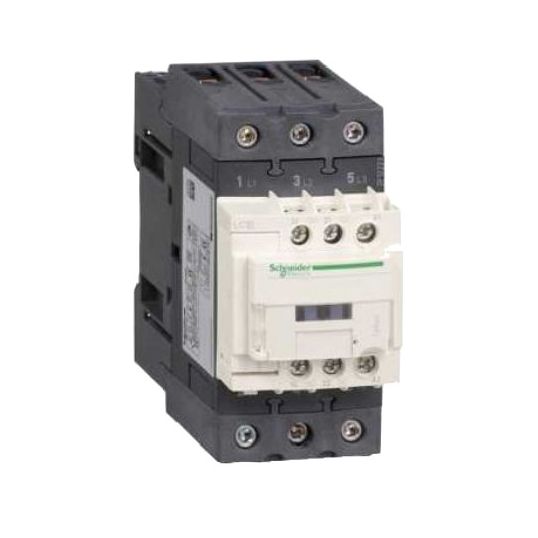

Schneider Contactor General Purpose AC Operated 3 Pole 30kW 40A AC3 60A AC1 48V 1NO-1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 48 Volt AC, AC3 Rating (kW): 30, AC3 Rating (Amps): 40 at 440 Volt AC, AC1 Rating (Amps): 60 at 440 Volt AC, 690 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 12-26 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail Mount or Base/Plate, IP2X, -60 to 80 deg C, 127 mm Height, 75 mm Width, 119 mm Depth

Key Specifications

Barcode (EAN-13)	3389110416800
SKU	TEELC1-D40E7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D40E7
AC1 Rating (Amps)	60 Amp AC1
AC3 Rating (Amps)	40 Amp AC3
AC3 Rating (kW)	30 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Contact Voltage	690 Volt AC
Depth	119 mm
Height	127 mm
IP Rating	IP2X
Mounting Method	DIN Rail/Base/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	48 Volt AC
Operating Time	12-26 ms Closing/4-19 ms Opening
Temperature	-60 to 80 deg C
Terminal Connection	Screw Clamp
Width	75 mm
