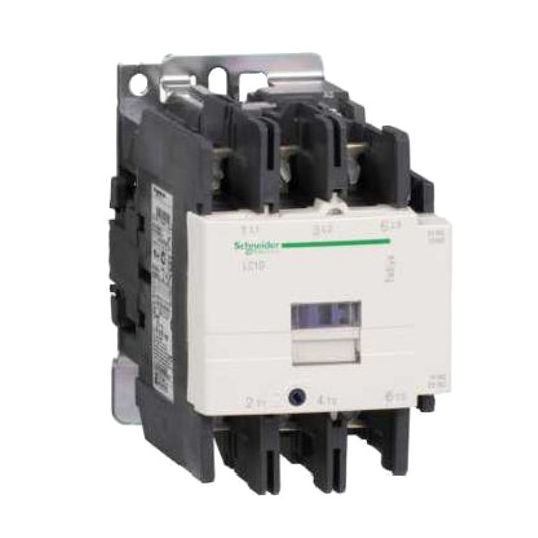

Contactor GP 3P 45kW 95A AC3 125A AC1 24VDC 1NO-1NC

Schneider Contactor General Purpose DC Operated 3 Pole 45kW 95A AC3 125A AC1 24VDC 1NO-1NC Auxilary DIN Rail/Plate Mount

PRODUCT CODE:
TEELC1-D95BW
Std Pack Size
1
OUR P/N:
TEELC1-D95BW

You need to be registered and logged in to view product details and pricing

Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 45, AC3 Rating (Amps): 95 at 440 Volt AC, AC1 Rating (Amps): 125 at 690 Volt AC, 1000 Volt AC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 95-130 ms Closing, 20-35 ms and 20-80 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 186 mm Depth

Additional Information

Additional Information
Brand Schneider
Range Name TeSys Model D
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product LC1D95BW
AC1 Rating (Amps) 125 Amp AC1
AC3 Rating (Amps) 95 Amp AC3
Contact Configuration 1 Normally Opened & 1 Normally Closed Aux
Contact Voltage 1000 Volt AC
Height 127 mm
IP Rating IP20
Depth 186 mm
Number Of Poles 3 Pole
Mounting Method DIN Rail/Plate
Operating Coil Voltage 24 Volt DC
Operating Time 95-130 ms Closing/20-35 ms & 20-80 ms Opening
Temperature -40 to 60 deg C
Product Type Contactors General
Width 85 mm
Terminal Connection Screw Clamp
