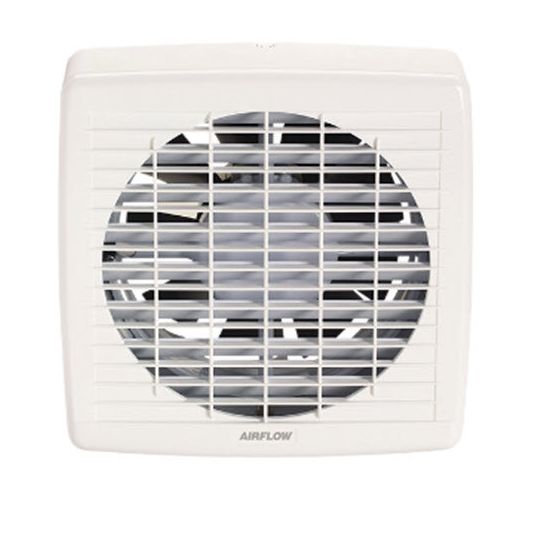

Airflow Exhaust Fan 200mm 230-240 Volt AC 0.18 Amp 600 cu-m/hr 50dBA White

chevron-left
loader
Loading...

Description

chevron-down
Exhaust Fan, Fan Size: 200mm, 230-240 Volt AC, 0.18 Amp, Motor Wattage: 38 Watt, Air Flow Rate (cu-m/hr): 600 cu-m/hr, Air Flow Rate (l/sec): 167 l/sec, Duct Size: 210mm, IPX4, Fan Noise: 50 dBA, Window Mounting, Speed Setting: 1 Speed, Motor Type: Ball Bearing, Plastic, White

Key Specifications

chevron-down
Barcode (EAN-13)
9311554250126
SKU
AIR7105A
Brand
Airflow
Range Name
MaxAir
Product Type
Exhaust fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • BCA axial fan
  • High performance air movement
  • Low noise level
  • One person installation
  • 271 x 271mm overall intake
  • 4-32mm window depth
  • 210mm duct diameter
  • 230mm hole diameter
  • Automatic shutter operation
  • 1 speed
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product 7105A-NLA
Air Flow Cubic Meters per Hour 600 cu-m/hr
Air Flow Litres per Second 167 l/sec
Colour White
Current 0.18 Amp
Duct Size 210mm
Fan Size 200 mm
IP Rating IPX4
Material Plastic
Motor Type Ball Bearing
Mounting Method Window
Noise Level 50 dBA
Speed Setting 1 Speed
Voltage 230-240 Volt
Wattage 38 Watt
