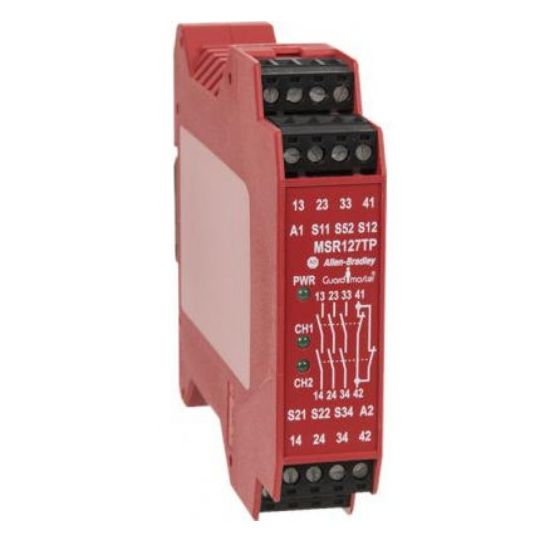

Allen-Bradley Safety Relay Module 3N.O-1NC 24VAC/DC Auto/Manual Reset

Description

Safety Relay Module, 24 Volt AC/DC, 3 Normally Opened/1 Normally Closed Configuration, 0.6-0.8 Nm Tightening Torque, Removable Screw Terminal Block Terminal, DIN Rail Mounting, IP20/40, -5 to 55 deg C, 99 mm Height, 22.5 mm Width, 114.5 mm Depth, Auto/Manual Reset

Key Specifications

Barcode (EAN-13)	10611320806493
SKU	ALB440R-N23132
Brand	Allen-Bradley
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Support a wide variety of input devices and output configurations Compact packages with removable terminals Ideal for relatively small safety applications and single zone control
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	440RN23132
Contact Configuration	3 Normally Opened/1 Normally Closed
Height	99 mm
Depth	114.5 mm
IP Rating	IP20/40
Please Note	Auto/Manual Reset
Mounting Method	DIN Rail
Terminal Type	Removable Screw Terminal Block
Temperature	-5 to 55 deg C
Width	22.5 mm
Voltage	24 Volt AC/DC
Tightening Torque	0.6-0.8 Nm
