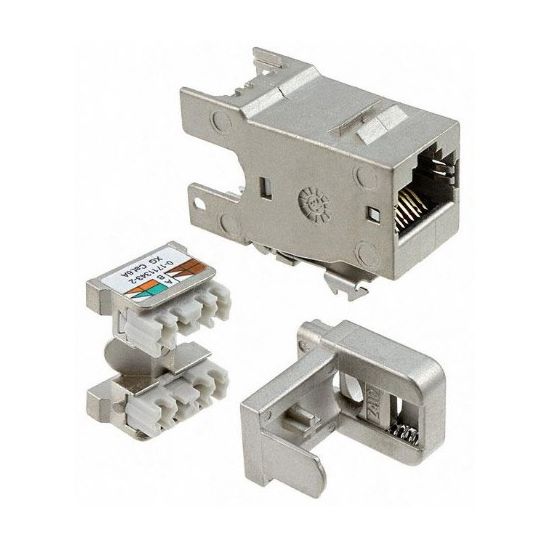

AMP Netconnect SL-Series Outlet Mechanism Modular Jack CAT6 Shielded 4 Pair For F/UTP Cables Side Exit No Dust Cover

$AMP_Netconnect\AMP_1711343_2.jpg$

Description

Outlet Mechanism CAT6 STP, Solid, Stranded, Solid: 24-22 AWG, Stranded: 26-24 AWG, IDC Termination, Standard Outlet, CAT6A Shielded Cable, Wiring Scheme: T568A, T568B, Flammability: UL 94 V-0, 1.6mm Panel Thickness, 1.27 um Contact Plating Thickness, Beryllium Copper Contact, Zinc Alloy Housing, Silver, 20.5mm Height, 21.5mm Width, 36.7mm Depth

Key Specifications

SKU	AMP1711343-2
Brand	AMP Netconnect

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	1711343-2
Cable Type	CAT6A Shielded
Colour	Silver
Conductor Size	Solid: 24-22 AWG/Stranded: 26-24 AWG
Conductor Type	Solid/Stranded
Contact Material	Beryllium Copper
Depth	36.7mm
Height	20.5mm
Housing Material	Zinc Alloy
Width	21.5mm
