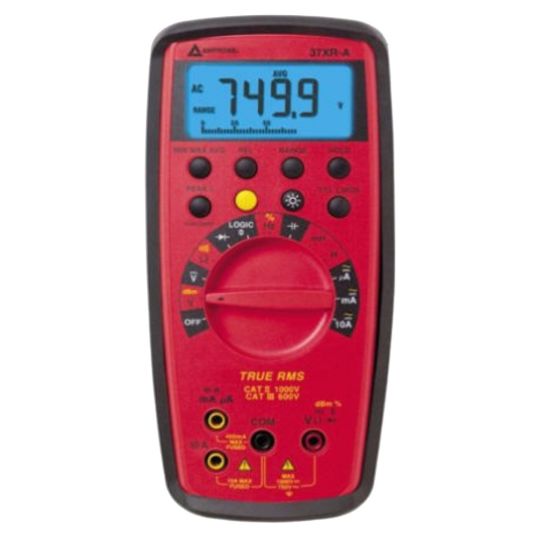

Amprobe XR-A Series Digital Multimeter Logic True-RMS 750V/1000VDC 10A AC/DC

Description

Digital Multimeter Logic True-RMS, 750 Volt AC, 1000 Volt DC, 400 mV/4 Volt/40 Volt/400 Volt, 100 uA/1000 uA/10 mA/100 mA/400 mA/10 Amp AC/DC, 100 Hz/1000 Hz/10 kHz/100 kHz/1000 kHz/10 MHz, 1000 Ohm/10 kOhm/100 kOhm/1000 kOhm/10 MOhm/40 MOhm, 9 Volt NEDA 1604 Battery, 0 to 45 deg C, LCD Display, 100 uVolt AC/DC Resolution, 40 nF/400 nF/4 uF/40 uF/400 uF Range, +/-2 % + 10/+/-1.2 % + 10 AC, +/-0.1 % + 5 DC Accuracy, 195 x 92 x 60mm

Key Specifications

Barcode (EAN-13)	095969365390
SKU	AMP37XR-A
Brand	Amprobe
Range Name	XR-A Series

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good workhorse D mm for all general applications AS61010 compliant to Cat III, 600V Supplied with holster and magnetic hanging strap 38XR-A is great for industrial applications True RMS versions for more accurate readings 37XR-A & 38XR-A offer dBm & % duty cycle
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	AMP37XR-A
Current	100 uA-1000 uA-10 mA-100 mA-400 mA-10 Amp AC/DC
Dimensions	195 x 92 x 60mm
Display Type	LCD
Frequency	100 Hz/1000 Hz/10 kHz/100 kHz/1000 kHz/10 MHz
Power Supply	9 Volt NEDA 1604
Product Type	simple
Resistance	1000 Ohm/10 kOhm/100 kOhm/1000 kOhm/10 MOhm/40 MOhm
Temperature	0 to 45 deg C
Voltage	750 Volt AC/1000 Volt DC/400mV 4-40-400 Volt
