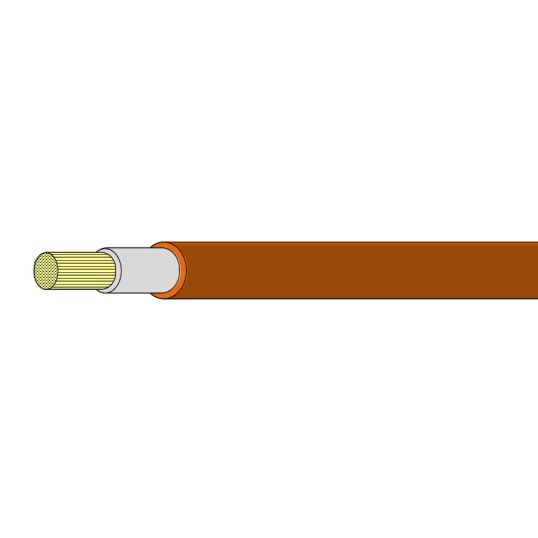

APS 70mm SDI Cable 500mtr

Description

SDI Cable, 70 mm, Class 5 Annealed Copper, 0.6-1 kV, 340 Amp, 1 Core, 960/0.3 mm Strands, 16.8 mm Overall Diameter, 500 mtr Length, 101 mm During Installation/67 mm After Installation Bend Radius, 1.1 mm Insulation Thickness, 1.4 mm Sheath Thickness, DC: 0.289 mOhm/m Conductor Resistance, X-HF-110 Insulation, Nitrile Modified V90HT PVC Sheath, Orange/Red/Blue/Black Sheath, 110 deg C, IEC 60332.1.2 AS/NZS 5000.1 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	APSLHDN70O
Brand	APS
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent Flexibility 99.9% OFHC (Oxygen Free High Conductivity) Copper which does not show any brittleness
Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	LHDN70O
Bend Radius	101 mm During Installation/67 mm After Installation
Conductor Resistance	DC: 0.289 mOhm/m
Conductor Size	70 mm
Conductor Type	Class 5 Annealed Copper
Current	340 Amp
Insulation Material	X-HF-110
Insulation Thickness	1.1 mm
Number of Cores	1 Core
Overall Diameter	16.8 mm
Sheath Colour	Black/Blue/Red/Orange
Sheath Material	Nitrile Modified V90HT PVC
Sheath Thickness	1.4 mm
Standards	IEC 60332.1.2 AS/NZS 5000.1 AS/NZS 3808 AS/NZS 5000.1
Stranding	960/0.3 mm
Temperature	110 deg C
Voltage	0.6-1 kV
