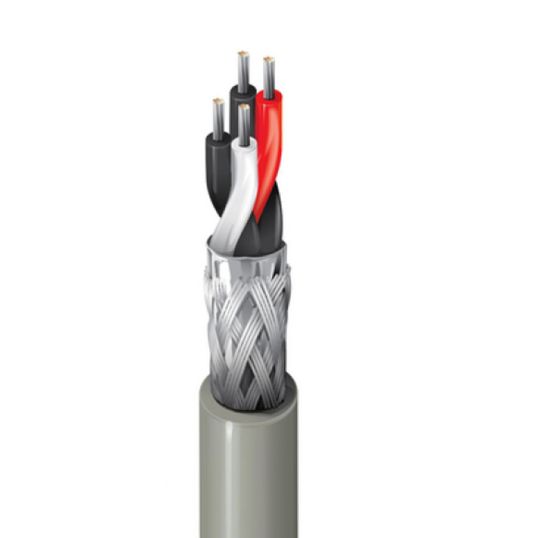

Belden 24 AWG 2 Pair Chrome Data Cable Overall Screened Polyethylene/PVC

Description

Data Cable, 24 AWG, Tinned Annealed Copper, 0.3 kV, 2.1 Amp, 2 Pair, 7x32 Strands, Overall Screened Screen, 0.34 in Overall Diameter, 3.5 in Bend Radius, 0.022 in Insulation Thickness, 0.035 in Sheath Thickness, 87 lbs Pulling Tension, 24 Ohm/1000ft Conductor Resistance, 90% Screen Coverage, Tinned Copper Braid/Aluminium/Polyester Tape Screen, Polyethylene Insulation, PVC Sheath, Chrome Sheath, -30 to 80 deg C, UL 1685 UL Loading IEC 60332-1-2, RS485

Key Specifications

Barcode (EAN-13)	9318674021940
SKU	BEL98420601000
Brand	Belden
Range Name	RS-485
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	9842 0601000
Conductor Resistance	24 Ohm/1000ft
Bend Radius	3.5 in
Conductor Size	24 AWG
Conductor Type	Tinned Annealed Copper
Current	2.1 Amp
Insulation Material	Polyethylene
Insulation Thickness	0.022 in
Number of Pairs	2 Pair
Overall Diameter	0.34 in
Please Note	RS485
Pulling Tension	87 lbs
Screen Format	Overall Screened
Screen Coverage	90%
Screen Material	Tinned Copper Braid/Aluminium/Polyester Tape
Sheath Colour	Chrome
Sheath Thickness	0.035 in
Sheath Material	PVC
Standards	UL 1685 UL Loading IEC 60332-1-2
Stranding	7x32
Temperature	-30 to 80 deg C
Voltage	0.3 kV
