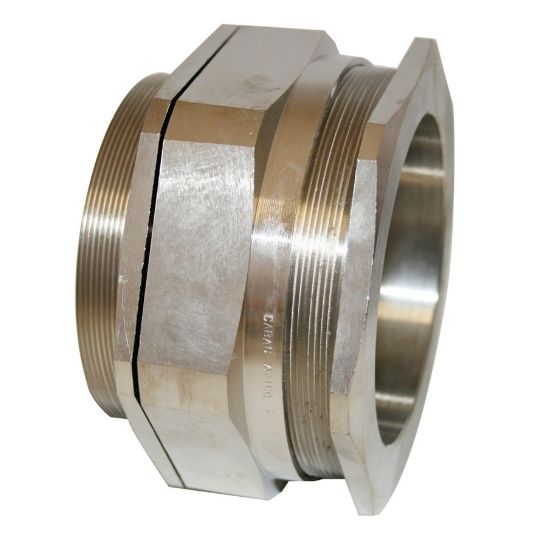

Cabac Metal Cable Gland Unarmoured General Purpose M63 47.2-55.9mm Nickel Plated Brass IP66

Description

The CABAC A2 range of glands are ideal for general purpose use with unarmoured PVC and XLPE sheathed cables. These glands are rated IP66, meaning they are dust tight and weather resistant. The product features a nickel-plated brass body which protects against the threat of corrosion and a neoprene seal that clamps onto the sheath of the cable. O-ring and locknut included.

Key Specifications

Barcode (EAN-13)	9318674560548
SKU	CAAA2-63
Brand	Cabac
Range Name	Type A2
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose cable gland designed for terminating unarmoured PVC and XLPE sheathed cables Nickel plated brass body offers superior corrosion resistance Rated IP66, ensuring dust-tight and weatherproof protection; operates in temperatures from -20 deg C to +130 deg C Neoprene seal clamps onto the cable sheath for a secure fit O-ring and locknut included for enhanced sealing and secure installation
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	A2-63
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cables
IP Rating	IP66
Max. Sheath OD	55.9 mm
Min. Sheath OD	47.2 mm
Seal Material	Neoprene
Thread Length	15 mm
Thread Size	M63
Width Across Corners	83.2 mm
