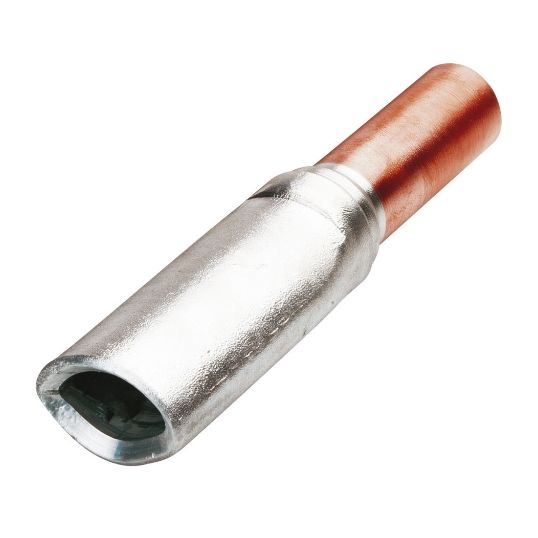

Cabac Crimp Link 4 Core Sector Bi-Metal 240mm Circular 70mm 132mm OAL

Description

Crimp Link, 4 Core Sector, Bi-Metal, 240 mm Circular Aluminium Conductor, 70 mm Copper Conductor, 110 MPa, Ductile Rating: 28%, Resistivity: 2.6 µOhm cm Maximum Aluminium/1.738 µOhm cm Copper, Conductivity: 61.8% IACS Minimum Aluminium/99.7% IACS Copper, Copper A/F Hex Die: 11.5 mm, Aluminium Crimping Die: A15 Nest, A19 Indent, Copper Crimping Die: HT130-C-70, 3 Aluminium Crimps/1 Copper Crimp, Annealed Bi-Metal Body, Aluminium Sleeve/Copper Palm Conductor, -40 to 125 deg C, Aluminium Inside Diameter: 24 mm W x 17.6 mm H, Copper Inside Diameter: 11.5 mm, 132 mm Overall Length

Key Specifications

Barcode (EAN-13)	9318674555575
SKU	CAABLKS240/4/70
Brand	Cabac
Range Name	Sector Links
Product Type	Links For Sector Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint, which will not be subject to electrolysis Link solid/standard sector aluminium cable to circular copper cable Crimp with V shaped nest die and 13 tonne or larger indentor tool Conforms to Australian and many international standards
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLKS240/4/70
A-F Hex Die	11.5 mm
Aluminium Conductor Size	240 mm
Aluminium Crimping Die	A15 Nest/A19 Indent
Aluminium Inside Diameter	24 mm W x 17.6 mm H
Aluminium Number of Crimps	3
Body Material	Annealed Bi-Metal
Conductive Material	Aluminium Sleeve/Copper Palm
Conductivity	61.8% IACS Minimum Aluminium/99.7% IACS Copper
Copper Conductor Size	70 mm
Copper Crimping Die	HT130-C-70
Copper Inside Diameter	11.5 mm
Ductile Rating	28%
Copper Number of Crimps	1
Overall Length	132 mm
Resistivity	2.6 µOhm cm Maximum Aluminium/1.738 µOhm cm Copper
Temperature	-40 to 125 deg C
Tensile Strength	110 MPa
