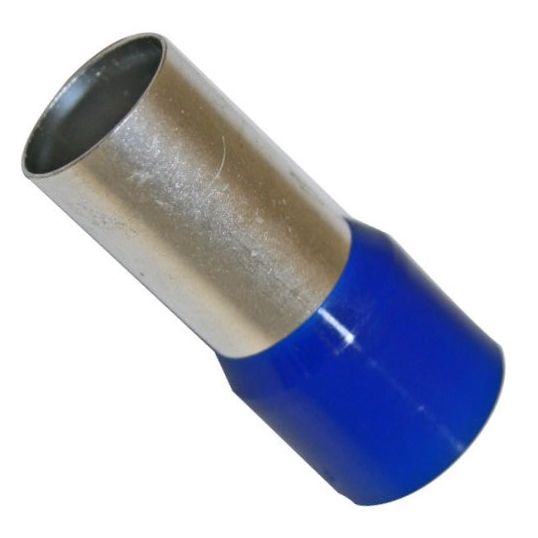

Cabac Bootlace Ferrule Insulated 120mm 17.6x27mm Pin 48mm OAL Blue

Description

Insulated Bootlace Ferrule, 120 mm, 1 Conductors, 27 mm Pin Length, 17.6 mm Pin Diameter, 21.4 mm Collar Inside Diameter, HNKE, 48 mm Overall Length, Copper Sleeve, Nylon Insulation, Blue Insulation, Copper Contact, -55 to 105 deg C, 3 Pack

Key Specifications

Barcode (EAN-13)	9318674554790
SKU	CAABLP12000
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	3
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP12000
Collar Inside Diameter	21.4 mm
Conductor Size	120 mm
Contact Material	Copper
Crimping Die	HNKE
Insulation Material	Nylon
Insulation Colour	Blue
Number of Conductors	1
Overall Length	48 mm
Pack Size	3 Pack
Pin Diameter	17.6 mm
Pin Length	27 mm
Sleeve Material	Copper
Temperature	-55 to 105 deg C
