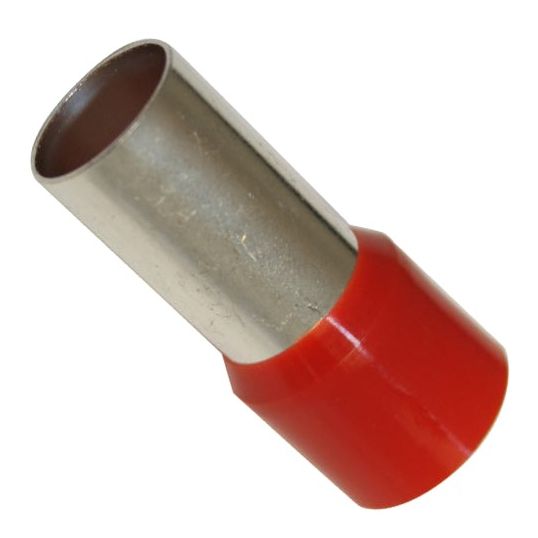

Cabac Bootlace Ferrule Insulated 95mm 15.5x25mm Pin 44mm OAL Red

Description

Insulated Bootlace Ferrule, 95 mm, 1 Conductors, 25 mm Pin Length, 15.5 mm Pin Diameter, 19.2 mm Collar Inside Diameter, HNKE, 44 mm Overall Length, Copper Sleeve, Nylon Insulation, Red Insulation, Copper Contact, -55 to 105 deg C, 3 Pack

Key Specifications

Barcode (EAN-13)	9318674552581
SKU	CAABLP9500
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	3
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP9500
Collar Inside Diameter	19.2 mm
Contact Material	Copper
Conductor Size	95 mm
Insulation Colour	Red
Crimping Die	HNKE
Number of Conductors	1
Insulation Material	Nylon
Overall Length	44 mm
Pin Length	25 mm
Pack Size	3 Pack
Pin Diameter	15.5 mm
Temperature	-55 to 105 deg C
Sleeve Material	Copper
