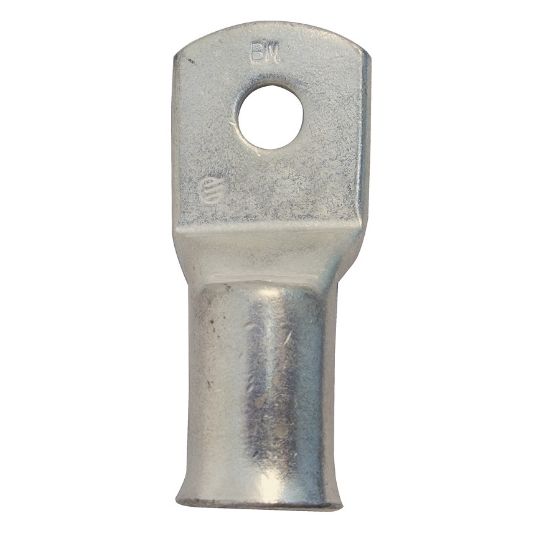

Cabac Crimp Lug Bell Mouth Copper 35mm M10 Stud 46mm OAL

Description

Designed to accommodate fine stranded flexible cable which tends to splay out after stripping. The special bell mouth funnel makes conductor insertion easy. At the top end of the cable diameter range (around 150 to 240 sq-mm ) some manufacturers cables will not fit into the nominal lug.

Key Specifications

Barcode (EAN-13)	9318674711674
SKU	CAACAL35-10BM
Brand	Cabac
Range Name	Bell Mouth Lugs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity annealed copper Crimped with CABAC and MSS Power standard tooling and copper dies Suitable for fine strand conductors Bellmouth makes insertion easier
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CAL35-10BM
A-F Hex Die	9.2 mm
Barrel Length	21 mm
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	35 mm
Crimping Die	HT130-C-35
Finish	Tin Electroplated
Inside Diameter	8.2 mm
Lug Length	20 mm
Lug Thickness	2.6 mm
Lug Width	18 mm
Number of Crimps	1
Number of Holes	1
Overall Length	46 mm
Stud Size	M10
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
