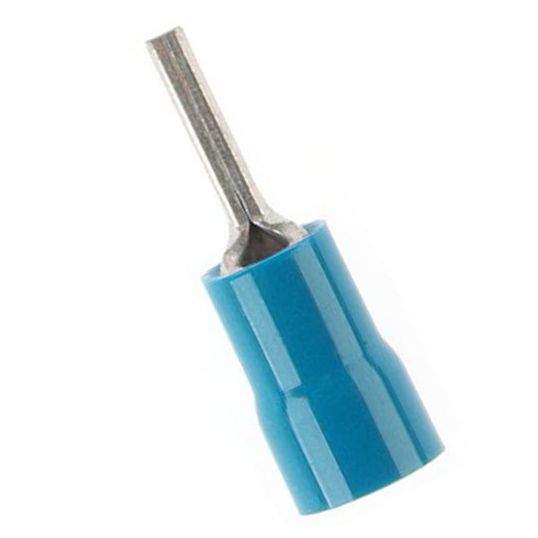

Cabac Pin Connector Insulated Double Grip 1-2.6mm Blue

Description

Pin Connector Insulated Double Grip, 1-2.6 mm, 600 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, PVC Insulation, 100 micro-Ohm Insulation Resistance, Blue Insulation, Tin Electroplated, 75 deg C

Key Specifications

Barcode (EAN-13)	9318674524915
SKU	CAAPC2DG
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Blade & Pin Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique funnel entry that speeds wire termination - increasing reliability High quality product - meets international standards
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	PC2DG
Conductive Material	Copper
Conductivity	99.5% IACS
Conductor Size	1-2.6mm
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Colour	Blue
Insulation Material	PVC
Insulation Resistance	100 micro-Ohm
Min. Breakdown Voltage	1.5 kV
Resistivity	1.738 micro-Ohm/cm
Temperature	75 deg C
Tensile Strength	200 MPa
Voltage Rating	600 Volt
