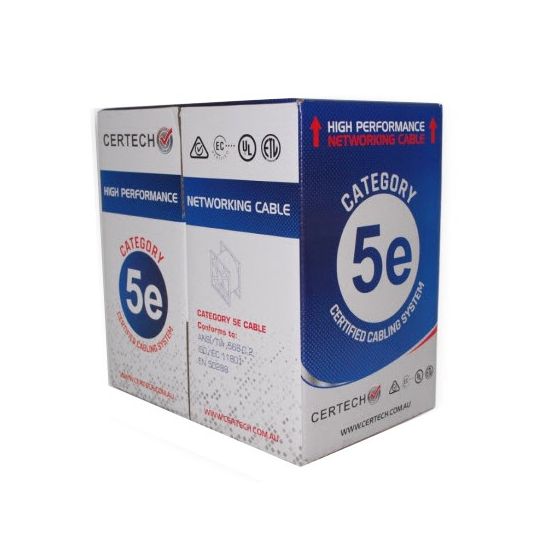

Certech UTP Network Cable High Performance Cat5e 4 Pair 24AWG HDPE/PVC Blue 305M
Description
Key Specifications
SKU |
CERNCC5ESLDBLUE
|
---|---|
Brand |
Certech
|
Product Type |
Network Cable
|
Technical Specifications
Additional Information
Standard Pack Size | 1 |
---|---|
UNSPSC Class | 43223300 |
UOM | EA |
Vendor Product | NCC5ESLDBLUE |
Cable Type | Cat5e UTP |
Conductor Diameter | 0.5mm |
Conductor Resistance | 9.5 Ohm/100 mtr at 20 deg C |
Conductor Size | 24 AWG |
Conductor Material | Solid Bare Copper |
Elongation | >/= 150% |
Filler Material | Rip Cord |
Frequency Bandwidth | 100 MHz |
Insulation Material | HDPE |
Pair Count | 4 Pair |
Outside Diameter | 5.1mm +/-0.3mm |
Sheath Colour | Blue |
Sheath Material | PVC |
Sheath Thickness | 0.50 +/-0.05mm |
Temperature | -20 to 75 deg C |
Tensile Strength | Before Aging: >/= 13.5 MPa |
