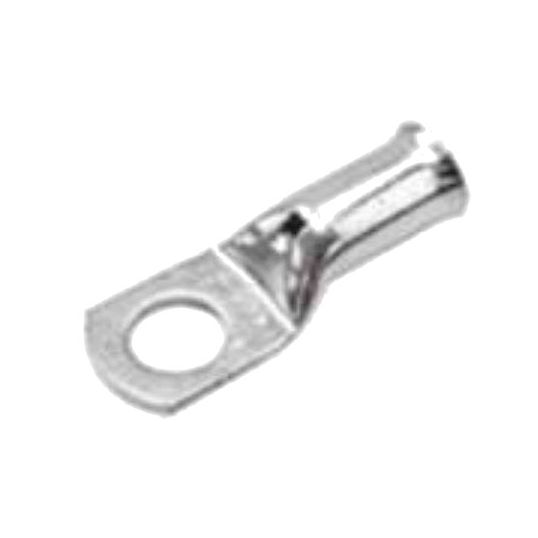

CJS Crimp Lug Bell Mouth Copper 25mm M6 Stud 41mm OAL

Description

Crimp Lug, Bell Mouth, Copper, 25 mm Conductor, M6 Stud, 21mm Barrel, 41mm Overall Length, 1 Hole, Annealed Electrolytic Copper Body, Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, 7.1mm Inside Diameter, 9.5mm Outside Diameter, 14mm Lug Width, 16mm Lug Length

Key Specifications

SKU	CJS-LUG-BM-CU-25M6
Brand	CJS
Product Type	Lugs Bell Mouth

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Electrolytic copper 99.95% purity Annealed material ensures optimal crimping properties Internal chamfer for easy cable insertion For flexible and stranded copper conductors Voltage rating - according to AS/NZS4325-Part 1 up to 30 kV (Um 36 kV)
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CJS-LUG-BM-CU-25M6
Barrel Length	21 mm
Body Material	Annealed Electrolytic Copper
Conductive Material	Copper
Conductor Size	25 mm
Finish	Tin Electroplated
Inside Diameter	7.1 mm
Lug Length	16 mm
Lug Width	14 mm
Number of Holes	1
Outside Diameter	9.5 mm
Overall Length	41 mm
Stud Size	M6 Stud
Temperature	-55 to 155 deg C
