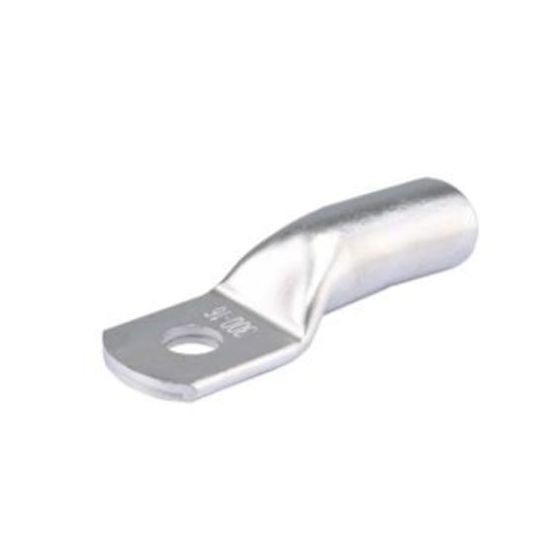

CJS Crimp Lug Long Barrel Copper 35mm M10 Stud Tin Electroplated 59mm OAL

Description

Our Long Barrel Copper lugs are designed for Outdoor use. They have no inspection window to seal the lug from any water ingress. The extra-long barrel allows for extra crimps where needed in high stress areas, such as Outdoor termination kits.

Key Specifications

SKU	CJS-LUG-LB-35M10
Brand	CJS
Product Type	Fret Lugs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Long barrel copper lugs are designed for outdoor use The CJS long barrel lugs are designed to be crimped with standard hexagon dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CJS-LUG-LB-35M10
Barrel Length	35 mm
Barrel Type	Long
Body Material	Copper
Conductive Material	Copper
Conductor Size	35 mm
Finish	Tin Electroplated
Inside Diameter	8.2 mm
Lug Length	19 mm
Lug Width	18 mm
Number of Crimps	10
Number of Holes	1
Outside Diameter	11.2 mm
Overall Length	59 mm
Stud Size	M10
Temperature	-55 to 150 deg C
