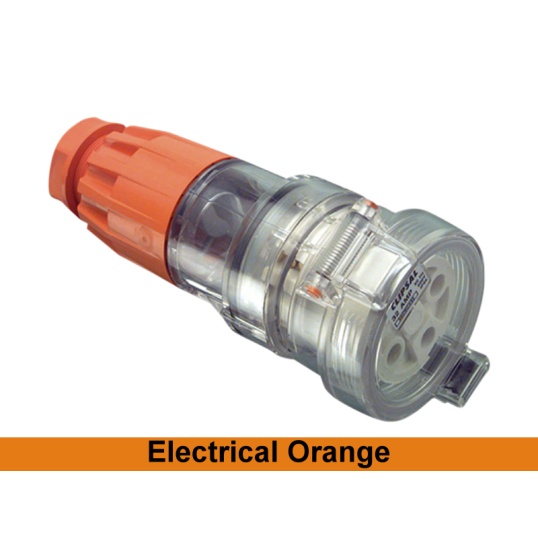

Clipsal Extension Socket Appliance Connector Weatherproof 3Ph 32A 4 Pin Round Electric Orange IP66

Description

Appliance Extension Socket Weatherproof, 500 Volt, 32 Amp, Straight Angle, 3 Phase Phase, 4 Pin Round, Screw Connection, 2.5-25 sq-mm Terminal Capacity, Cable Gland Cable Entry, M40 Cable Gland Size, 9-29 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, -25 to 75 deg C, 90 mm Height, 90 mm Width, 180 mm Depth

Key Specifications

Barcode (EAN-13)	9311554198398
SKU	CLI56CSC432
Brand	Clipsal
Range Name	56 Series
Product Type	Extension Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56CSC432-EO
Angle	Straight
Cable Entry	Cable Gland
Cable Gland Size	M40
Cable Nominal Diameter	9-29 mm
Colour	Orange
Connection Type	Screw
Current	32 Amp
Depth	180 mm
Height	90 mm
IP Rating	IP66
Material	Polycarbonate
Pin Configuration	4 Pin Round
Phase	3 Phase
Temperature	-25 to 75 deg C
Terminal Capacity	2.5-25 sq-mm
Voltage	500 Volt
Width	90 mm
