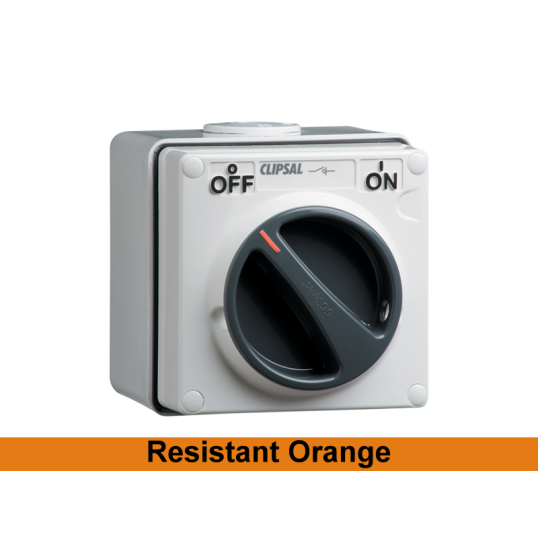

Clipsal 56 Series Isolating Switch Surface Mounting Weatherproof 3P 50A 500V Chemical Resistant Orange IP66
Loading...
Description
Isolating Switch Surface Mounting Weatherproof, 500 Volt AC, 50 Amp, 50 Hz, 1 Gang, 3 Pole, Polycarbonate, Chemical Resistant Orange, IP66, Legend: ON OFF, Rotary Knob, Screw, Surface Mount, 107 mm Height, 101 mm Width, 108 mm Depth, -25 to 75 deg C
Key Specifications
| Barcode (EAN-13) |
9311554239596
|
|---|---|
| SKU |
CLI56SW350RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SW350-RO |
| Colour | Chemical Resistant Orange |
| Connection Type | Screw |
| Current | 50 Amp |
| Depth | 108 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON OFF |
| Method of Operation | Rotary Knobs |
| Mounting Method | Surface |
| Number Of Gangs | 1 Gang |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 75 deg C |
| Voltage | 500 Volt |
| Width | 101 mm |
