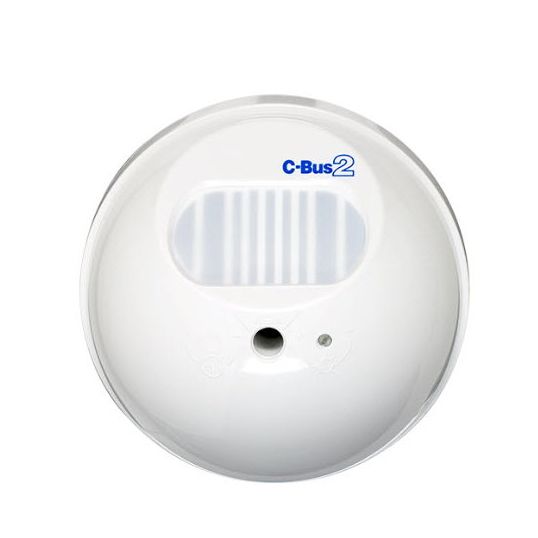

Clipsal C-Bus PIR Occupancy Sensor Indoor Surface Mount 90deg IP66 White

Description

PIR Occupancy Sensor, PIR Sensing Method, Lateral: 6 mtr/Frontal: 8.5 mtr Sensing Range, Horizontal: 0-120 deg/Vertical: 90 deg Sensing Beam, 2.4 mtr Mounting Height, Surface Mounting, Plastic, White

Key Specifications

Barcode (EAN-13)	9311554348229
SKU	CLI5751LWE
Brand	Clipsal
Range Name	C-Bus
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	C-bus PIR motion detector suitable for indoor use The unit has a coverage range of 6 mtr x 6 mtr and a field of view of 90 deg The unit features a light threshold adjustment on the unit The time delay is programmable in the range 1 sec-18 hrs Features a sunset switch program Draws 18 mA from a C-bus network 1 channel Light sensitivity adjustable setting Creep zone protection
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5751L-WE
Colour	White
Mounting Height	2.4 mtr
Material	Plastic
Mounting Method	Surface
Sensing Beam	Horizontal: 0-120 deg/Vertical: 90 deg
Sensing Method	PIR
Sensing Range	Lateral: 6 mtr/Frontal: 8.5 mtr
