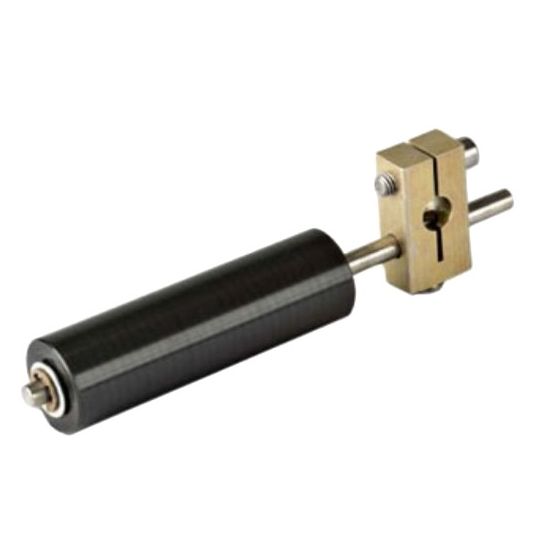

Eaton Cutler Hammer Limit Switch Operator Rod Type Heavy Duty Adjustable Wide Roller Lever Nylatron

Description

Limit Switch Operator Rod Type, Adjustable Wide Roller Lever, NEMA 1/3/3S/4/4X/6/6P/13, IP67, Plug-In, 10 to 200 deg F, Length: 4.67 in, 0.75 in Height, 1.12 in Width

Key Specifications

Barcode (EAN-13)	10782113320103
SKU	CUTE50KL37
Brand	Eaton Cutler Hammer
Range Name	E50 Series
Product Type	Limit Switch Operators

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime Chemical-resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws??? The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring?? 600 V rating, ridge-topped contacts and wiping action ensure continuity even to logic level circuits? Keyed, four-direction head positioning Standard 5 deg pre-travel and 90 deg total travel??? Rotary heads are field convertible CW, CCW, or both, without special tools
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	E50KL37
Actuator Type	Adjustable Wide Roller Lever
IP Rating	IP67
Height	0.75 in
NEMA Rating	NEMA 1/3/3S/4/4X/6/6P/13
Temperature	10 to 200 deg F
Width	1.12 in
