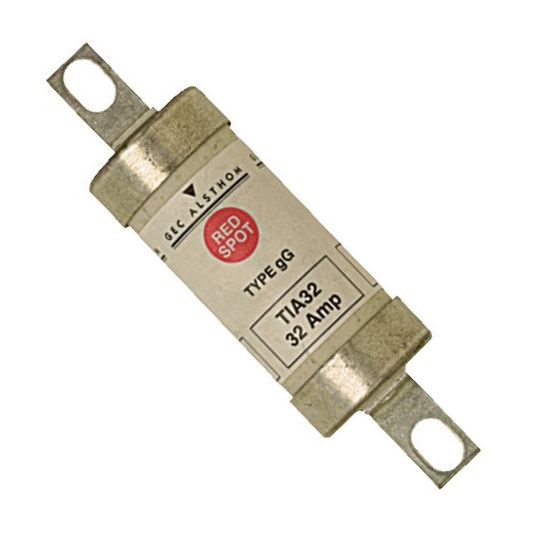

IPD Fuse Link HRC 2 Hole Fixing Bolt In Offset 32 Amp 415VAC/250VDC 80 kA at 415VAC 40 kA at 250VDC

Description

Fuse Link HRC 2 Hole Fixing Bolt In Offset, 415 VAC/250 VDC, 32 Amp, Class gG, Interrupt Capacity: 80 kA at 415 VAC, 40 kA at 250 VDC, 73mm Fixing Centres, Bolt In Offset Tag, 23.8mm Diameter x 85.8mm Length, BS88 Type A2

Key Specifications

Barcode (EAN-13)	9322017011635
SKU	EEFTIA32L
Brand	IPD
Range Name	Red Spot
Product Type	Fuse Links HRC Bolt In

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use with RS32, RSM63 and RS63 holders Fault current limitation, distribution/cable protection, equipment/switchgear protection, motor/starter protection
Standard Pack Size	10
UNSPSC Class	39121600
UOM	EA
Vendor Product	TIA32L
Current	32 Amp
Dimensions	23.8mm Diameter x 85.8mm Length
Fixing Centres	73mm
Interrupt Capacity	80 kA
Tag Type	Bolt In Offset
Standard Reference	BS88 Type A2
Voltage	415 Volt AC/250 Volt DC
Utilisation Category	Class gG
