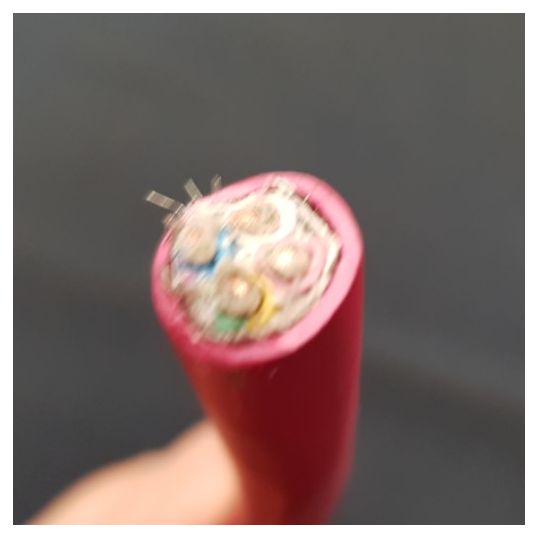

Electra Flexible VSD/EMC Cable Fire Rated Screened 3 Core & Earth 2.5mm 0.6/1kV Copper X-HF-110/TACBS/HFS-110-TP Red

Description

VSD/EMC Cable Fire Rated, 2.5 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 15 mm Overall Diameter, 2.5 mm Earth Conductor, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Tinned Copper Braid Screen, Red/Blue/White/Green/Yellow Core, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, AS/NZS 5000.1 AS/NZS 1125 AS/NZS 3013:2005

Key Specifications

SKU	ELCFRVSD3025+ERED
Brand	Electra
Product Type	VSD/EMC Cable Fire Rated

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FRVSD3025+E RED
Conductor Size	2.5 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	X-HF-110
Insulation Thickness	0.7 mm
Number of Cores	3 Core + Earth
Overall Diameter	15 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Red
Sheath Material	HFS-110-TP
Sheath Thickness	1.8 mm
Standards	AS/NZS 5000.1 AS/NZS 1125 AS/NZS 3013:2005
Voltage	0.6-1 kV
