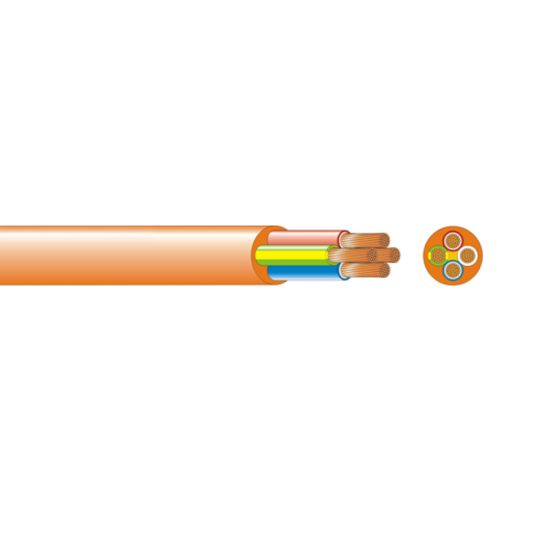

Electra Flexible Cable 3 Core & Earth 50mm Plain Annealed Copper PVC/PVC Orange

Description

Flexible Cable, 50 mm, Class 6 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 703/0.3 mm Strands, 31 mm Overall Diameter, 16 mm Earth Conductor, 1.4 mm Insulation Thickness, 1.9 mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1 AS/NZS 1125 IEC 60228 AS/NZS 3008.1

Key Specifications

SKU	ELCFSRC3500E
Brand	Electra
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FSRC3500E
Conductor Size	50 mm
Conductor Type	Class 6 Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Earth Conductor Size	16 mm
Insulation Material	V-90 PVC
Insulation Thickness	1.4 mm
Number of Cores	3 Core + Earth
Overall Diameter	31 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	1.9 mm
Standards	AS/NZS 5000.1 AS/NZS 1125 IEC 60228 AS/NZS 3008.1
Stranding	703/0.3 mm
Temperature	90 deg C
Voltage	0.6-1 kV
