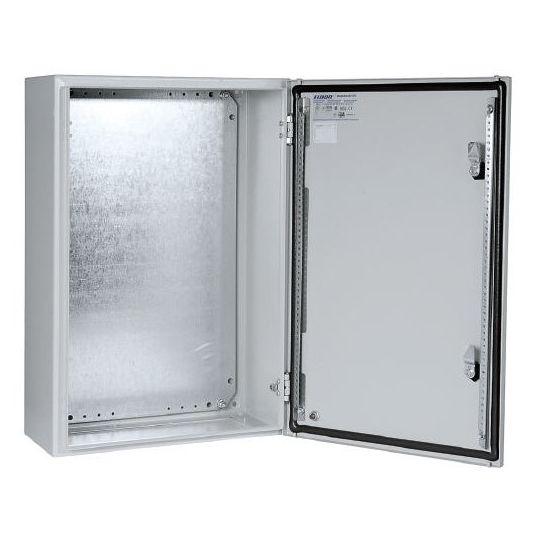

Eldon Enclosure Single Door General Purpose Industrial RAL 7035 Light Grey IP66 Mild Steel 500 Wx300 Dx600 H mm

chevron-left
loader
Loading...

Description

chevron-down
Enclosure Single Door General Purpose Industrial, 1 Door, Wall Mount, IP66, NEMA 4X, 12, 13, Mild Steel Housing, Mild Steel Door, Galvanized Steel Mounting Plate, FIP Polyurethane Gasket, RAL 7035 Light Grey, Powder Coated, 600 mm Height, 500 mm Width, 300 mm Depth, Please Note: Indoor Use

Key Specifications

chevron-down
Barcode (EAN-13)
8713574129092
SKU
ELDMAS0605030R5
Brand
Eldon
Range Name
MAS Series
Product Type
Enclosures Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Over 50 stocked sizes ensuring you have a high quality product ready for any situation in exactly the right size
  • IP66 (MAS)/IP55 (MAD) and IK10 protection with fully folded and seam welded mild steel contruction providing the highest protection for your internal components, for a range of indoor applications (NOTE-Optional glazed door models are IP55/IK08)
  • Wall fixing holes are pressed out 2mm allowing for the enclosure to lay on its back with no damage to the rear
  • Strengthened over folded front frame serves as a gutter to keep liquids away from the polyurethane gasket
  • Concealed hinges with captive hinge pins provide 130 degree opening and clean smooth lines, plus easy removal for maintenance and extra resistance to vibration
  • Gland plate installed as standard towards the rear of the enclosure to make for easy wiring
  • Comes with galvanised mounting plate as standard with gland plate opening same width as mounting plate for easy installation. Mounting plate is marked at 10mm intervals for easy horizontal positioning of equipment
  • Reversible door allows for flexibility in installation with the same enclosure able to be used in double the applications
  • A large range of custom locking options available to replace the standard 3mm double-bit lock
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product MAS0605030R5
Colour RAL7035 Light Grey
Door Material Mild Steel
Depth 300 mm
Finish Powder Coated
Gasket Material FIP Polyurethane
Height 600 mm
Housing Material Mild Steel
IP Rating IP66
Mounting Method Wall
Mounting Plate Material Galvanised Steel
NEMA Rating NEMA 4X/12/13
Number of Doors 1
Please Note Indoor Use
Width 500 mm
