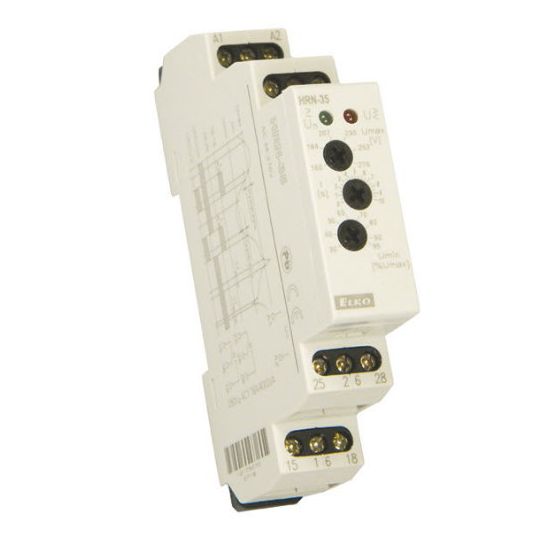

Elko Voltage Monitoring Relay 230V 3P 16A w/Neutral Monitor 16A 2CO

Description

Voltage Monitoring Relay, 230 Volt, 16 Amp, 3P 2C/O 16A with Neutral Monitor, 2CO, DIN Rail Mount, IP40, AgNi, -20 to 55 deg, 90 mm Height, 52 mm Width, 65 mm Depth

Key Specifications

Barcode (EAN-13)	8594030338216
SKU	ELOHRN-43N
Brand	Elko
Product Type	Voltage Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Supply voltage AC230V HRN-43N for circuits 3x400/230V Immune against the voltage from rotary machines connected to two phases Fixed (t1), adjustable (t2) - delay Function 'MEMORY' manual reset, 'RESET' button on front panel 2 output relays, selectable function of 2nd relay (independent/parallel) Output contact 2x changeover 16A 3-module, DIN rail mounting
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	HRN-43N
Contact Configuration	2 Changeover
Contact Material	AgNi
Current	16 Amp
Depth	65 mm
Height	90 mm
IP Rating	IP40
Mounting Method	DIN Rail
Temperature	-20 to 55 deg
Voltage	230 Volt
Width	52 mm
