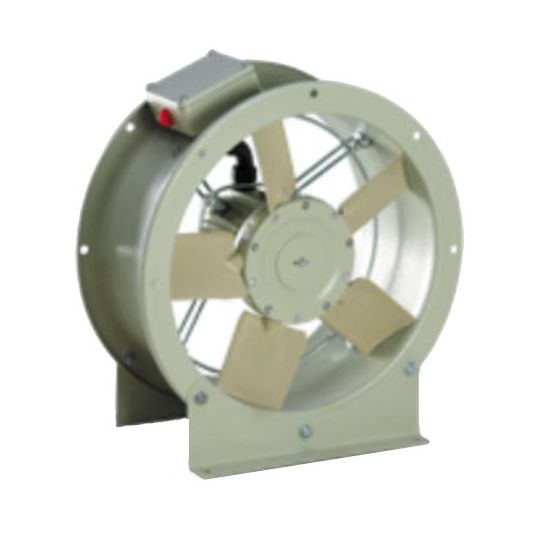

FantechTrade In-Line Ducted Exhaust Fan 450mm 415V 1.4 Amp 0.37 kW 5789 cu-m/hr 50 dBA at 3m 23 rps

Description

In-Line Ducted Exhaust Fan, Fan Size: 450mm, 415 Volt, 1.4 Amp, 0.37 kW, Phase: 3 Phase, Air Flow Rate (cu-m/hr): 5789 cu-m/hr, Air Flow Rate (l/sec): 1608 l/sec, 50 dBA at 3m, Speed: 23 rps, IP55,-20 to 70 deg C, Galvanised Steel Coated/Polyester Epoxy, 190mm Width, 515mm Height

Key Specifications

Barcode (EAN-13)	9325971006556
SKU	FANSCD454
Brand	FantechTrade
Product Type	Exhaust Fans Ducted

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compact, short cased design Light-weight but robust construction An electrical junction box is fitted as standard Capable of operating in ambient temperatures ranging from-20 to 70 deg C Can be mounted in any position
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	SCD454
Air Flow Cubic Meters per Hour	5789 cu-m/hr
Current	1.4 Amp
Air Flow Litres per Second	1608 l/sec
Fan Size	450 mm
Finish	Galvanised
Height	515 mm
IP Rating	IP55
Phase	3 Phase
Sound Level	50 dBA at 3m
Speed	23 rps
Temperature	-20 to 70 deg C
Wattage	0.37 kW
Voltage	415 Volt
Width	190 mm
