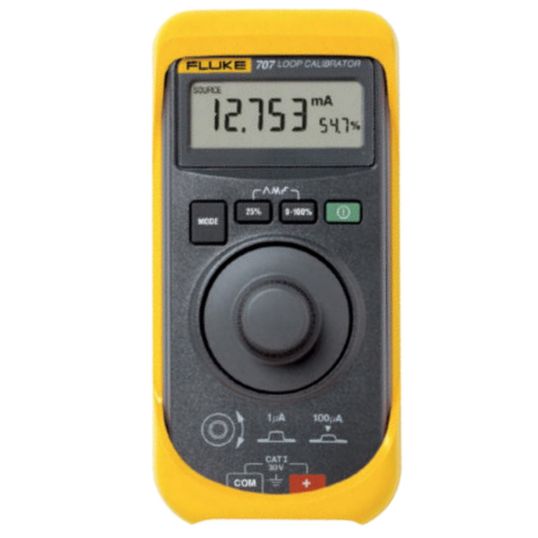

Fluke Current Loop Calibrator 0-28VDC 0-24mA Dial Interface 1UA Resolution

Description

Current Loop Calibrator, 0 to 28 Volt DC, 0 to 24 mA, 9 Volt Alkaline Battery, -10 to 55 deg C, 1 mV Resolution, 0 to 20 mA/4 to 20 mA Sourcing Current Range, 0.015% Rdg + 2 LSD Accuracy, 152 x 70 x 41mm, Dialinterface 1UA Resolution

Key Specifications

Barcode (EAN-13)	095969107150
SKU	FLU707
Brand	Fluke

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High performance loop calibrator for calibration, repair, and maintenance Features large display and simple, quick-click interface for easy one-handed operation Provides simultaneous mA and % readout for quick, easy interpretation of readings Delivers mA accuracy of 0015% Provides 1 uA resolution for mA source, simulate, and measure Features push button 25% steps for fast, easy linearity checks Includes 0-100% span check for fast confirmation of zero and span Provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a D mm Runs on a single 9 V battery that is easily changed without breaking the calibration seal
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	FLU707
Current	0-24 mA
Dimensions	152 x 70 x 41mm
Power Supply	9 Volt Alkaline
Please Note	Dial Interface 1UA Resolution
Product Type	Current Loop Calibrator
Temperature	-10 to 55 deg C
Voltage	0-28 Volt DC
