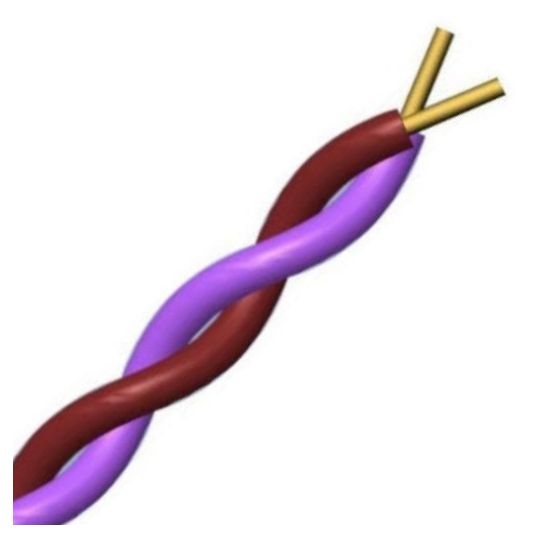

Garland Pro Series Telephone Jumper Cable 0.5mm 1 Pair Polyethylene Violet/Brown

Description

Telephone Jumper Cable, 24 AWG/0.2 mm, 0.5mm Conductor Diameter, 93.25 Ohm/km at 20 deg C Conductor Resistance, 0.25mm Insulation Thickness, Stranding: 1/0.5mm, Bend Radius: Static: 11mm, 1 Pair, 28 N Max. Pulling Force, PACW Conductor, Polyethylene Insulation, Violet/Brown Sheath,-30 to 70 deg C

Key Specifications

SKU	GARJO-D06-T-VTBNA2-G
Brand	Garland
Product Type	Jumper Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	250
UNSPSC Class	26121600
UOM	MTR
Vendor Product	JO-D06-T-VTBNA2-G
Bend Radius	Static: 11mm
Conductor Diameter	0.5mm
Conductor Material	PACW
Conductor Resistance	93.25 Ohm/km at 20 deg C
Conductor Size	24 AWG/0.2 mm
Insulation Material	Polyethylene
Insulation Thickness	0.25mm
Max. Pulling Force	28 N
Pair Count	1 Pair
Sheath Colour	Violet/Brown
Stranding	1/0.5mm
Temperature	-30 to 70 deg C
